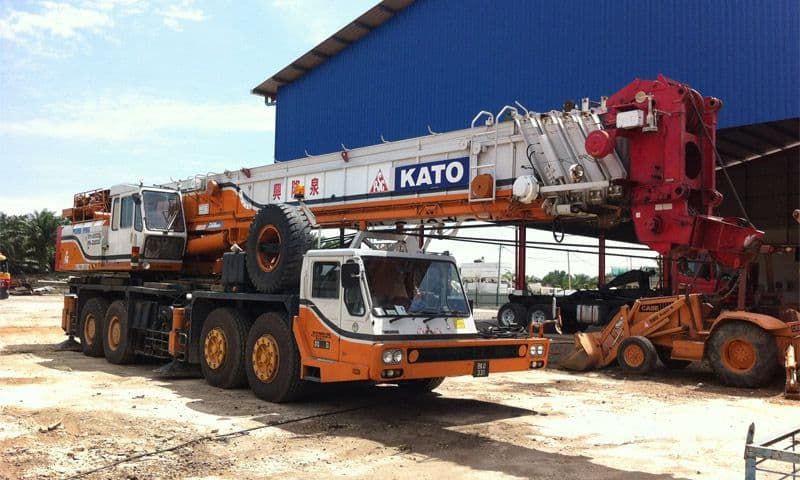

Kato NK1200
Browse All Kato or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 52.5 ft in (16 m) |
| Max Height @ Max Raise Angle - No Jib | 173.89 ft in (53 m) |
| Min Working Radius | 11 ft in (3.35 m) |
| Max Working Radius | 131.24 ft in (40 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 264554.73 lb (120000 kg) |
| Swing Speed | 1.9 rpm |
Dimensions
| Transport Length | 53.81 ft in (16400 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 13.13 ft in (4000 mm) |
| Width W/ Outriggers Extended | 26.25 ft in (8000 mm) |
| Upper Structure Tail Swing Radius | 13.95 ft in (4250 mm) |
Upper Structure Engine
| Make | Kato |
| Model | 8DC61C |
| Gross Power | 254 hp (189.5 kw) |
| Power Measured @ | 1950 rpm |
| Max Torque | 701.2 lb ft (950.6 Nm) |
| Torque Measured @ | 1200 rpm |
Carrier Engine
| Make | Kato |
| Model | Allison 8V-92TA |
| Gross Power | 435 hp (324.4 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1236.1 lb ft (1675.8 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 736.6 cu in (12.1 L) |
Operational
| Operating Weight | 158292 lb (71800 kg) |
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 105.7 gal (400 L) |
| Upper Structure Hydraulic System Fluid Capacity | 330.3 gal (1250 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00-24-24PR |
Transmission
| Number Of Forward Gears | 10 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 40.4 mph (65 km/h) |
