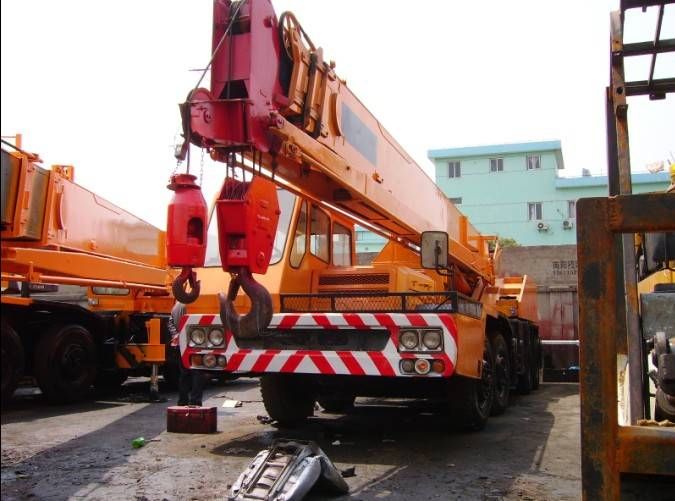

Kato NK300
Browse All Kato or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 32.81 ft in (10 m) |
| Max Height @ Max Raise Angle - No Jib | 101.71 ft in (31 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 39.34 ft in (11990 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 12.31 ft in (3750 mm) |
| Carrier Length | 21.66 ft in (6600 mm) |
Carrier Engine
| Make | Kato |
| Model | 8DC20A |
| Gross Power | 261.4 hp (195 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 643.8 lb ft (872.8 Nm) |
| Torque Measured @ | 1200 rpm |
Operational
| Operating Weight | 70107 lb (31800 kg) |
| Carrier Fuel Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Tire Size | 11.00-20-14PR |
Transmission
| Transmission Type | Synchromesh |
| Max Speed - Forward | 41.7 mph (67 km/h) |
