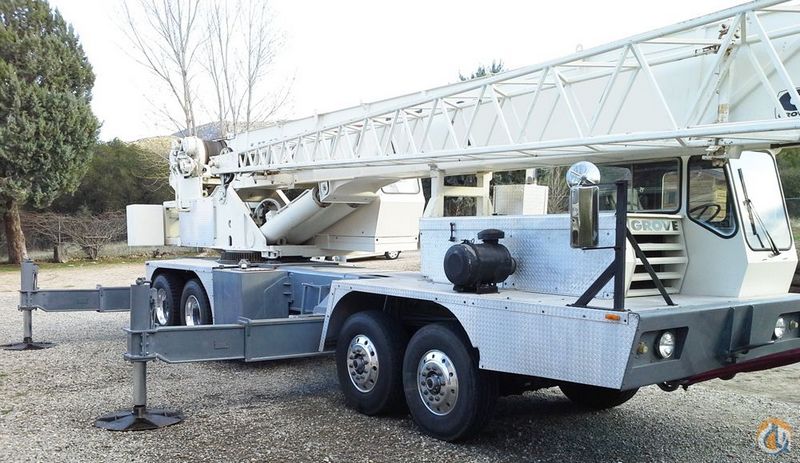

Grove TMS475LP
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 35 ft in (10.67 m) |
| Max Height @ Max Raise Angle - No Jib | 142 ft in (43.29 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 120 ft in (36.58 m) |
| Max Elevating Angle | 76 degrees |
| Max Lift Capacity | 74000 lb (33565.84 kg) |
| Swing Speed | 2.6 rpm |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 44.72 ft in (13630 mm) |
| Transport Width | 8.01 ft in (2440 mm) |
| Transport Height | 11.03 ft in (3360 mm) |
| Ground Clearance | 0.76 ft in (229 mm) |
| Width W/ Outriggers Extended | 20.05 ft in (6110 mm) |
| Carrier Length | 34.98 ft in (10660 mm) |
| Upper Structure Tail Swing Radius | 12.01 ft in (3660 mm) |
Carrier Engine
| Make | Grove |
| Model | 6-71N |
| Net Power | 213 hp (158.9 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 582 lb ft (789.1 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 426 cu in (7 L) |
Operational
| Operating Weight | 69818 lb (31669 kg) |
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 90 gal (340.7 L) |
| Upper Structure Hydraulic System Fluid Capacity | 127 gal (480.8 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 62 amps |
| Tire Size | front 15x22.5 rear 11.00x20 |
Transmission
| Transmission Type | Fuller roadranger RTO-613 |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 51.4 mph (82.7 km/h) |
