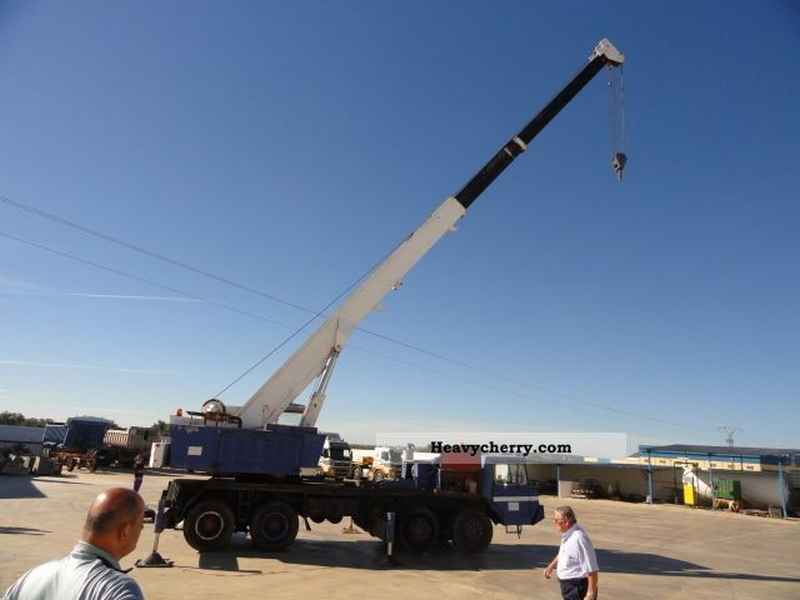

Grove TM275LP
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 32 ft in (9.76 m) |
| Max Height @ Max Raise Angle - No Jib | 80 ft in (24.39 m) |
| Min Working Radius | 12 ft in (3.66 m) |
| Max Working Radius | 75 ft in (22.86 m) |
| Max Elevating Angle | 75 degrees |
| Max Lift Capacity | 60000 lb (27215.55 kg) |
| Swing Speed | 3 rpm |
| Number Of Sections | 3 |
Dimensions
| Transport Length | 39.58 ft in (12063.99 mm) |
| Transport Width | 8.01 ft in (2440 mm) |
| Transport Height | 11.85 ft in (3611.88 mm) |
| Ground Clearance | 0.92 ft in (280.42 mm) |
| Width W/ Outriggers Extended | 16 ft in (4876.8 mm) |
| Carrier Length | 32.25 ft in (9829.8 mm) |
| Upper Structure Tail Swing Radius | 9.85 ft in (3002.28 mm) |
Upper Structure Engine
| Number Of Cylinders | 8 |
| Make | Grove |
| Model | 391 |
| Net Power | 171 hp (127.6 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 346 lb ft (469.2 Nm) |
| Torque Measured @ | 2100 rpm |
Carrier Engine
| Make | Grove |
| Model | RD501 |
| Gross Power | 214.8 hp (160.2 kw) |
| Power Measured @ | 3000 rpm |
| Max Torque | 451 lb ft (611.5 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 501 cu in (8.3 L) |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 63894 lb (28981.9 kg) |
| Number Of Axels | 4 |
| Upper Structure Fuel Capacity | 57 gal (215.8 L) |
| Carrier Fuel Capacity | 60 gal (227.2 L) |
| Upper Structure Hydraulic System Fluid Capacity | 146 gal (552.7 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 37 amps |
| Tire Size | 11.00x20 |
Transmission
| Transmission Type | Fuller 5CW65 |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 50 mph (80.5 km/h) |
