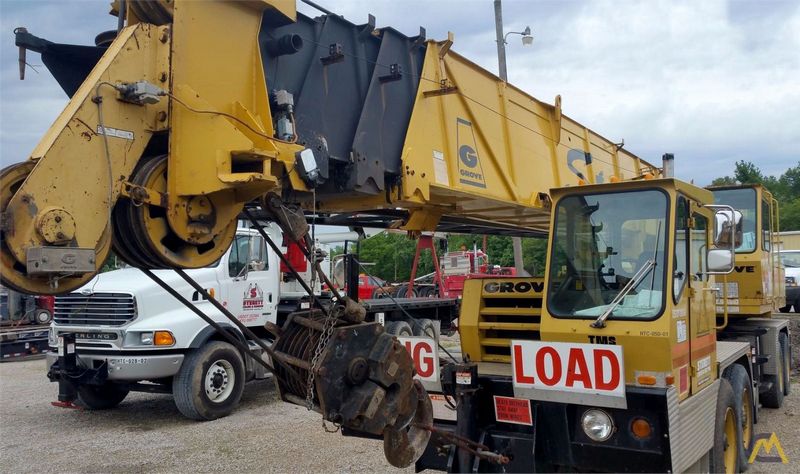

Grove TMS475
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 40 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 84 ft in (25.61 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 110 ft in (33.53 m) |
| Max Elevating Angle | 76 degrees |
| Max Lift Capacity | 74000 lb (33565.84 kg) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 44.73 ft in (13633 mm) |
| Transport Width | 8 ft in (2438 mm) |
| Transport Height | 11.05 ft in (3366 mm) |
| Ground Clearance | 0.76 ft in (230 mm) |
| Width W/ Outriggers Extended | 22.59 ft in (6885 mm) |
| Carrier Length | 34.33 ft in (10462 mm) |
| Upper Structure Tail Swing Radius | 12.01 ft in (3659 mm) |
Carrier Engine
| Make | Grove |
| Model | 6-71N |
| Gross Power | 230 hp (171.6 kw) |
| Net Power | 203 hp (151.4 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 551 lb ft (747.1 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 426 cu in (7 L) |
Operational
| Operating Weight | 76884 lb (34874 kg) |
| Number Of Axels | 5 |
| Carrier Fuel Capacity | 96 gal (363.4 L) |
| Carrier Cooling System Fluid Capacity | 13 gal (49 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 11.00x20 14PR |
Transmission
| Transmission Type | Fuller roadranger RTO-6613 |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 51.4 mph (82.7 km/h) |
