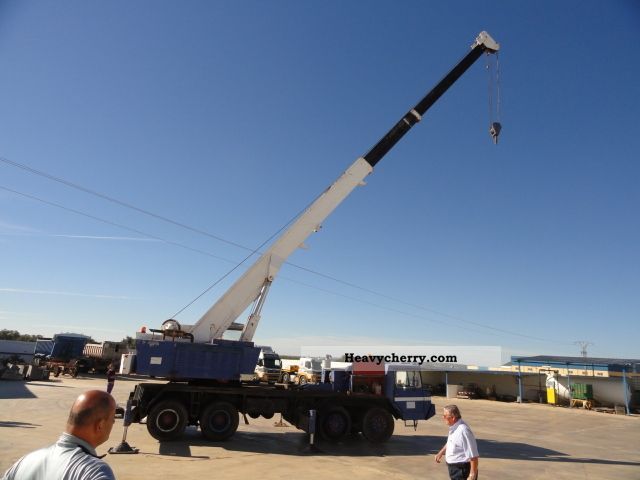

Grove TM275
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 32 ft in (9.76 m) |
| Max Height @ Max Raise Angle - No Jib | 80 ft in (24.39 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 75 ft in (22.86 m) |
| Max Elevating Angle | 75 degrees |
| Number Of Sections | 3 |
| Max Lift Capacity | 60000 lb (27215.55 kg) |
| Swing Speed | 2.5 rpm |
Dimensions
| Transport Length | 32.36 ft in (9863.33 mm) |
| Transport Height | 11.76 ft in (3584.45 mm) |
| Width W/ Outriggers Extended | 16 ft in (4876.8 mm) |
| Carrier Length | 25.67 ft in (7824.22 mm) |
Upper Structure Engine
| Number Of Cylinders | 8 |
| Make | Grove |
| Model | 361 |
| Gross Power | 168 hp (125.3 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 330 lb ft (447.5 Nm) |
| Torque Measured @ | 2000 rpm |
Carrier Engine
| Make | Grove |
| Model | RD-501 |
| Gross Power | 214.8 hp (160.2 kw) |
| Power Measured @ | 3000 rpm |
| Max Torque | 451 lb ft (611.5 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 501 cu in (8.3 L) |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 59228 lb (26865.4 kg) |
| Number Of Axels | 4 |
| Upper Structure Fuel Capacity | 52 gal (196.9 L) |
| Carrier Fuel Capacity | 60 gal (227.2 L) |
| Upper Structure Hydraulic System Fluid Capacity | 133 gal (503.5 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 37 amps |
| Tire Size | 11.00x20,12ply |
Transmission
| Transmission Type | Fuller 5CW65 |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 51.8 mph (83.4 km/h) |
| Max Speed - Reverse | 6.4 mph (10.3 km/h) |
