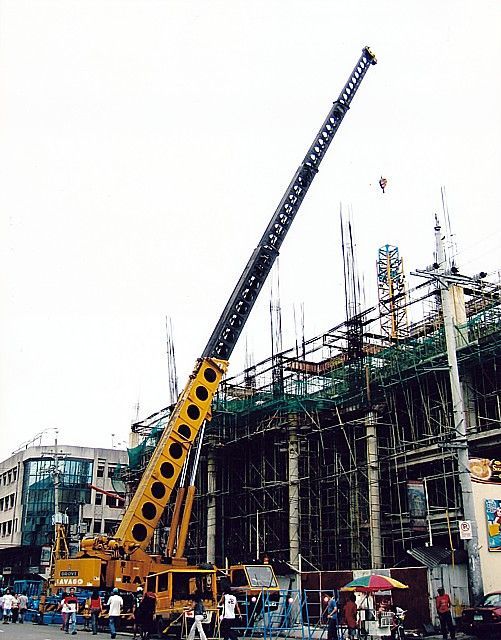

Grove TM1275
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 46 ft in (14.03 m) |
| Max Height @ Max Raise Angle - No Jib | 141 ft in (42.98 m) |
| Min Working Radius | 12 ft in (3.66 m) |
| Max Working Radius | 120 ft in (36.58 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 250000 lb (113398.1 kg) |
| Swing Speed | 1.9 rpm |
| Number Of Sections | 6 |
Dimensions
| Transport Length | 53.58 ft in (16330 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 13.16 ft in (4010 mm) |
| Ground Clearance | 0.92 ft in (279 mm) |
| Width W/ Outriggers Extended | 29.01 ft in (8840 mm) |
| Carrier Length | 46 ft in (14020 mm) |
| Upper Structure Tail Swing Radius | 16.25 ft in (4950 mm) |
Upper Structure Engine
| Make | Grove |
| Model | V555-C230 |
| Net Power | 212 hp (158.1 kw) |
| Power Measured @ | 3300 rpm |
| Max Torque | 394 lb ft (534.2 Nm) |
| Torque Measured @ | 1800 rpm |
| Displacement | 555 cu in (9.1 L) |
Carrier Engine
| Make | Grove |
| Model | KT450 |
| Net Power | 405 hp (302.1 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 1170 lb ft (1586.4 Nm) |
| Torque Measured @ | 1550 rpm |
| Displacement | 1150 cu in (18.9 L) |
Operational
| Operating Weight | 182175 lb (82633.2 kg) |
| Number Of Axels | 6 |
| Upper Structure Fuel Capacity | 60 gal (227.2 L) |
| Carrier Fuel Capacity | 100 gal (378.6 L) |
| Upper Structure Hydraulic System Fluid Capacity | 423 gal (1601.3 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Tire Size | 14.00x20 |
Transmission
| Transmission Type | Fuller Roadranger RTO12515 |
| Number Of Forward Gears | 15 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 42.2 mph (67.8 km/h) |
