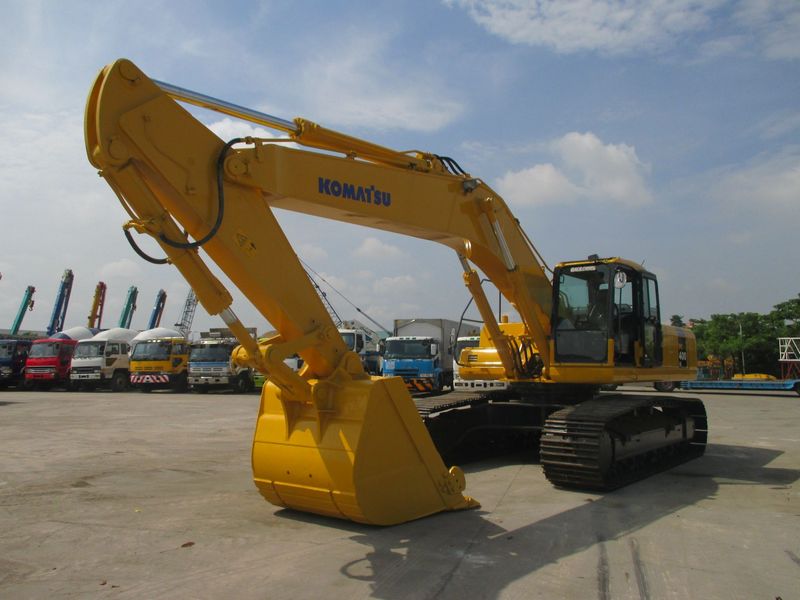

Komatsu PC400LC-7
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 4.34 ft in (1320 mm) |
| Height To Top Of Cab | 10.72 ft in (3265 mm) |
| Length Of Track On Ground | 17.57 ft in (5355 mm) |
| Tail Swing Radius | 11.96 ft in (3645 mm) |
Undercarriage
| Number Of Track Rollers Per Side | 8 |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Drawbar Pull | 73962.14 lb (329 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 49 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D125E-3 |
| Net Power | 330 hp (246.1 kw) |
| Power Measured @ | 1850 rpm |
Operational
| Operating Weight | 95460 lb (43300 kg) |
| Fuel Capacity | 172 gal (651.1 L) |
| Cooling System Fluid Capacity | 9 gal (34.1 L) |
| Hydraulic System Fluid Capacity | 65.5 gal (248 L) |
| Engine Oil Capacity | 10 gal (37.9 L) |
| Swing Drive Fluid Capacity | 4.3 gal (16.3 L) |
Swing Mechanism
| Swing Speed | 9 rpm |
