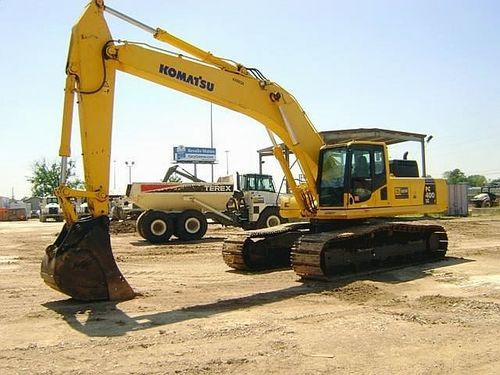

Komatsu PC400LC-8
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 39.06 ft in (11905 mm) |
| Shipping Height Of Unit | 12.64 ft in (3850 mm) |
| Max Cutting Height | 33.83 ft in (10310 mm) |
| Max Loading Height | 23.2 ft in (7070 mm) |
| Max Reach Along Ground | 35.62 ft in (10855 mm) |
| Max Vertical Wall Digging Depth | 17.41 ft in (5305 mm) |
| Max Digging Depth | 22.46 ft in (6845 mm) |
| Boom/Stick Option (Hex) 1 | One-piece Boom 7060mm / arm 2400mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 39.36 ft in (11995 mm) |
| Max Cutting Height | 33.75 ft in (10285 mm) |
| Shipping Height Of Unit | 12.29 ft in (3745 mm) |
| Max Loading Height | 23.23 ft in (7080 mm) |
| Max Reach Along Ground | 36.85 ft in (11230 mm) |
| Max Vertical Wall Digging Depth | 24.1 ft in (7345 mm) |
| Max Digging Depth | 24.1 ft in (7345 mm) |
| Boom/Stick Option (Hex) 2 | One-piece Boom 7060mm / arm 2900mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 39.18 ft in (11940 mm) |
| Max Cutting Height | 35.82 ft in (10915 mm) |
| Max Loading Height | 24.82 ft in (7565 mm) |
| Shipping Height Of Unit | 11.93 ft in (3635 mm) |
| Max Reach Along Ground | 38.78 ft in (11820 mm) |
| Max Vertical Wall Digging Depth | 22.54 ft in (6870 mm) |
| Max Digging Depth | 25.66 ft in (7820 mm) |
| Boom/Stick Option (Hex) 3 | One-piece Boom 7060mm / arm 3380mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 39.21 ft in (11950 mm) |
| Shipping Height Of Unit | 12.75 ft in (3885 mm) |
| Max Cutting Height | 36.18 ft in (11025 mm) |
| Max Loading Height | 25.32 ft in (7715 mm) |
| Max Reach Along Ground | 40.57 ft in (12365 mm) |
| Max Digging Depth | 27.71 ft in (8445 mm) |
| Max Vertical Wall Dig Depth | 23.91 ft in (7285 mm) |
| Boom/Stick Option (Hex) 4 | One-piece Boom 7060mm / arm 4000mm |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 38.7 ft in (11795 mm) |
| Shipping Height Of Unit | 14.56 ft in (4435 mm) |
| Max Cutting Height | 37.69 ft in (11485 mm) |
| Max Loading Height | 26.73 ft in (8145 mm) |
| Max Reach Along Ground | 43.25 ft in (13180 mm) |
| Max Digging Depth | 30.37 ft in (9255 mm) |
| Max Vertical Wall Dig Depth | 26.74 ft in (8150 mm) |
| Boom/Stick Option (Hex) 5 | One-piece Boom 7060mm / arm 4800mm |
Dimensions
| Ground Clearance | 1.81 ft in (550 mm) |
| Height To Top Of Cab | 10.72 ft in (3265 mm) |
| Width To Outside Of Tracks | 11.95 ft in (3640 mm) |
| Length Of Track On Ground | 17.67 ft in (5385 mm) |
| Tail Swing Radius | 11.96 ft in (3645 mm) |
| Removal Counterweight Clearance | 4.34 ft in (1320 mm) |
Undercarriage
| Track Gauge | 8.99 ft in (2740 mm) |
| Shoe Size | 35.44 in (900 mm) |
| Ground Pressure | 9.73 psi (67.02 kPa) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Drawbar Pull | 73962.14 lb (329 kN) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 49 |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D125E-5 |
| Net Power | 344.7 hp (257 kw) |
| Gross Power | 362.1 hp (270 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 673.8 cu in (11.1 L) |
| Aspiration | Turbocharged, aftercooled |
Operational
| Operating Weight | 100636.7 lb (45648 kg) |
| Fuel Capacity | 171.8 gal (650 L) |
| Cooling System Fluid Capacity | 9.8 gal (36.8 L) |
| Hydraulic System Fluid Capacity | 65.6 gal (248 L) |
| Engine Oil Capacity | 10.1 gal (38 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 4.3 gal (16.2 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 5400 psi (37231.7 kPa) |
| Hydraulic Pump Flow Capacity | 182.3 gal/min (690 L/min) |
Swing Mechanism
| Swing Torque | 111059 lb ft (150575.8 Nm) |
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 2.6 yd3 (2 m3) |
| Minimum Bucket Capacity | 1.5 yd3 (1.2 m3) |
| Maximum Bucket Capacity | 3.8 yd3 (2.9 m3) |
