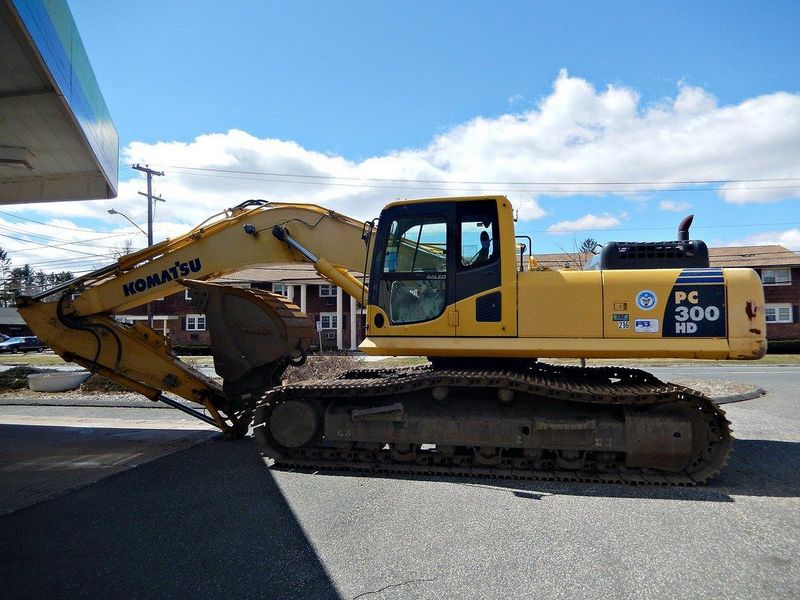

Komatsu PC300HD-8
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.52 ft in (11130 mm) |
| Shipping Height Of Unit | 10.65 ft in (3244 mm) |
| Max Cutting Height | 33.04 ft in (10070 mm) |
| Max Loading Height | 23 ft in (7005 mm) |
| Max Reach Along Ground | 33.85 ft in (10315 mm) |
| Max Vertical Wall Digging Depth | 19 ft in (5795 mm) |
| Max Digging Depth | 21.75 ft in (6640 mm) |
| Boom/Stick Option (Hex) 1 | 2540mm 8'4" |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.65 ft in (11170 mm) |
| Max Cutting Height | 33.67 ft in (10260 mm) |
| Shipping Height Of Unit | 11.23 ft in (3421 mm) |
| Max Loading Height | 23.5 ft in (7155 mm) |
| Max Reach Along Ground | 35.67 ft in (10870 mm) |
| Max Vertical Wall Digging Depth | 20.5 ft in (6235 mm) |
| Max Digging Depth | 23.83 ft in (7265 mm) |
| Boom/Stick Option (Hex) 2 | 3185mm 10'5" |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.85 ft in (11230 mm) |
| Max Cutting Height | 34.98 ft in (10660 mm) |
| Max Loading Height | 24.92 ft in (7600 mm) |
| Shipping Height Of Unit | 12.11 ft in (3690 mm) |
| Max Reach Along Ground | 38.41 ft in (11705 mm) |
| Max Vertical Wall Digging Depth | 23.42 ft in (7145 mm) |
| Max Digging Depth | 26.58 ft in (8100 mm) |
| Boom/Stick Option (Hex) 3 | 4020mm 13'2" |
Dimensions
| Ground Clearance | 1.83 ft in (550 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Width To Outside Of Tracks | 11.95 ft in (3640 mm) |
| Length Of Track On Ground | 14.25 ft in (4350 mm) |
| Tail Swing Radius | 11.32 ft in (3450 mm) |
| Removal Counterweight Clearance | 4.33 ft in (1320 mm) |
Undercarriage
| Track Gauge | 8.99 ft in (2740 mm) |
| Shoe Size | 35.44 in (900 mm) |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 49 |
| Drawbar Pull | 73880 lb (329 kN) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D114E-3 |
| Net Power | 246 hp (184 kw) |
| Gross Power | 260 hp (194 kw) |
| Power Measured @ | 1950 rpm |
| Displacement | 505 cu in (8.3 L) |
| Aspiration | Turbocharged and aftercooled |
Operational
| Operating Weight | 87958 lb (39897 kg) |
| Fuel Capacity | 160 gal (605 L) |
| Cooling System Fluid Capacity | 8 gal (30.3 L) |
| Hydraulic System Fluid Capacity | 49.7 gal (188 L) |
| Engine Oil Capacity | 9.2 gal (35 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.5 gal (13.4 L) |
| Alternator Supplied Amperage | 60 amps |
| Hydraulic System Relief Valve Pressure | 5400 psi (37231.7 kPa) |
| Hydraulic Pump Flow Capacity | 141 gal/min (533.8 L/min) |
Swing Mechanism
| Swing Torque | 82313 lb ft (11386 Nm) |
| Swing Speed | 9.5 rpm |
Buckets
| Reference Bucket Capacity | 2.6 yd3 (2 m3) |
| Minimum Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Maximum Bucket Capacity | 2.6 yd3 (2 m3) |
