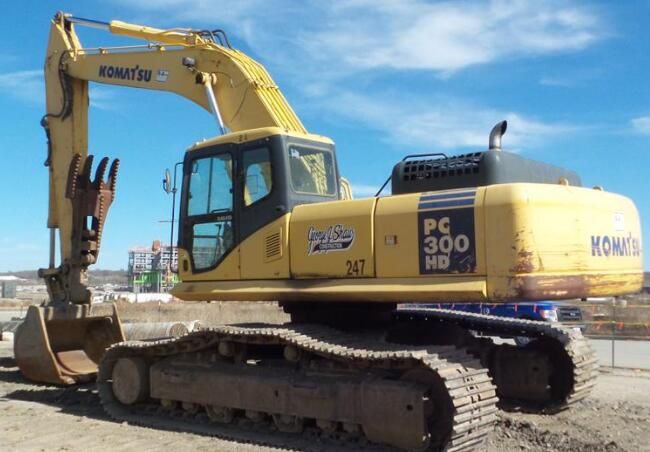

Komatsu PC300HD-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.11 ft in (11005 mm) |
| Shipping Height Of Unit | 11.16 ft in (3400 mm) |
| Max Cutting Height | 31.8 ft in (9690 mm) |
| Max Loading Height | 22.02 ft in (6710 mm) |
| Max Reach Along Ground | 32.55 ft in (9920 mm) |
| Max Vertical Wall Digging Depth | 16.28 ft in (4960 mm) |
| Max Digging Depth | 20.54 ft in (6260 mm) |
| Boom/Stick Option (Hex) 1 | Boom 21'3" (6470mm)/Stick 7'3" (2200mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 35.98 ft in (10965 mm) |
| Max Cutting Height | 33.08 ft in (10080 mm) |
| Shipping Height Of Unit | 11.16 ft in (3400 mm) |
| Max Loading Height | 23 ft in (7010 mm) |
| Max Reach Along Ground | 33.86 ft in (10320 mm) |
| Max Vertical Wall Digging Depth | 18.77 ft in (5720 mm) |
| Max Digging Depth | 21.69 ft in (6610 mm) |
| Boom/Stick Option (Hex) 2 | Boom 21'3" (6470mm)/Stick 8'4" (2550mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 35.77 ft in (10900 mm) |
| Max Cutting Height | 34.29 ft in (10450 mm) |
| Max Loading Height | 24.12 ft in (7350 mm) |
| Shipping Height Of Unit | 10.77 ft in (3280 mm) |
| Max Reach Along Ground | 35.73 ft in (10890 mm) |
| Max Vertical Wall Digging Depth | 20.48 ft in (6240 mm) |
| Max Digging Depth | 23.43 ft in (7140 mm) |
| Boom/Stick Option (Hex) 3 | Boom 21'3" (6470mm)/Stick 10'5" (3185mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 36.01 ft in (10975 mm) |
| Shipping Height Of Unit | 11.85 ft in (3610 mm) |
| Max Cutting Height | 34.98 ft in (10660 mm) |
| Max Loading Height | 24.94 ft in (7600 mm) |
| Max Reach Along Ground | 38.39 ft in (11700 mm) |
| Max Digging Depth | 26.51 ft in (8080 mm) |
| Max Vertical Wall Dig Depth | 23.33 ft in (7110 mm) |
| Boom/Stick Option (Hex) 4 | Boom 21'3" (6470mm)/Stick 13'2" (4020mm) |
Dimensions
| Ground Clearance | 2.32 ft in (706 mm) |
| Height To Top Of Cab | 11.04 ft in (3365 mm) |
| Width To Outside Of Tracks | 11.72 ft in (3570 mm) |
| Length Of Track On Ground | 13.19 ft in (4020 mm) |
| Tail Swing Radius | 10.83 ft in (3300 mm) |
| Removal Counterweight Clearance | 4.66 ft in (1420 mm) |
Undercarriage
| Track Gauge | 9.42 ft in (2870 mm) |
| Shoe Size | 27.56 in (700 mm) |
| Ground Pressure | 8.81 psi (60.68 kPa) |
| Max Travel Speed | 2.74 mph (4.41 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SA6D114E |
| Gross Power | 232 hp (173 kw) |
| Power Measured @ | 1750 rpm |
| Displacement | 504.7 cu in (8.3 L) |
Operational
| Operating Weight | 82452.9 lb (37400 kg) |
| Fuel Capacity | 142.7 gal (540 L) |
| Hydraulic System Fluid Capacity | 54.2 gal (205 L) |
| Hydraulic System Relief Valve Pressure | 5050 psi (34818.5 kPa) |
| Hydraulic Pump Flow Capacity | 126.9 gal/min (480 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 1.3 yd3 (1 m3) |
| Minimum Bucket Capacity | 1.3 yd3 (1 m3) |
| Maximum Bucket Capacity | 2.5 yd3 (2 m3) |
