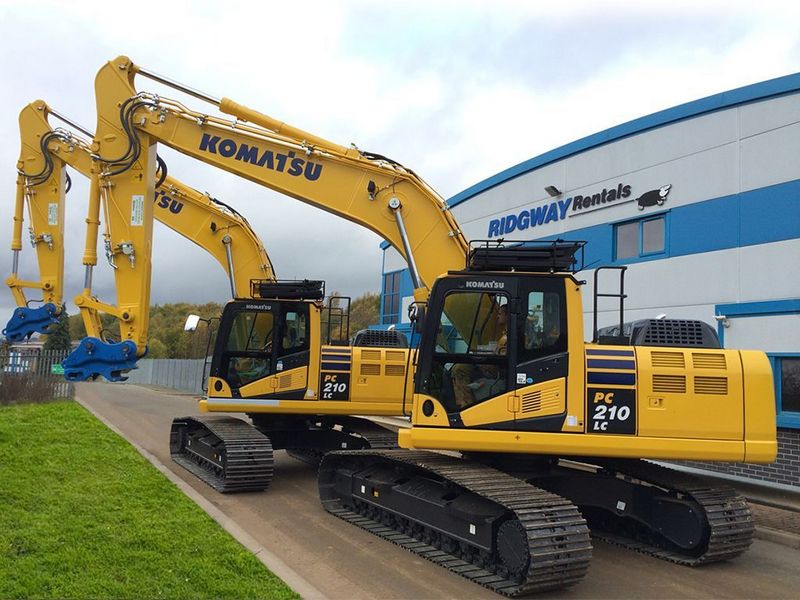

Komatsu PC210LC-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 30.93 ft in (9425 mm) |
| Shipping Height Of Unit | 9.75 ft in (2970 mm) |
| Max Cutting Height | 30.53 ft in (9305 mm) |
| Max Loading Height | 21.25 ft in (6475 mm) |
| Max Reach Along Ground | 31.83 ft in (9700 mm) |
| Max Vertical Wall Digging Depth | 19.62 ft in (5980 mm) |
| Max Digging Depth | 21.72 ft in (6620 mm) |
| Boom/Stick Option (Hex) 1 | Boom 18'8" (5700mm)/Stick 9'7" (2925mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 30.89 ft in (9415 mm) |
| Max Cutting Height | 29.19 ft in (8895 mm) |
| Shipping Height Of Unit | 9.39 ft in (2860 mm) |
| Max Loading Height | 19.9 ft in (6065 mm) |
| Max Reach Along Ground | 28.61 ft in (8720 mm) |
| Max Vertical Wall Digging Depth | 16.29 ft in (4965 mm) |
| Max Digging Depth | 18.16 ft in (5535 mm) |
| Boom/Stick Option (Hex) 2 | Boom 18'8" (5700mm) / Stick 5'11" (1800mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 31.11 ft in (9480 mm) |
| Max Cutting Height | 29.7 ft in (9050 mm) |
| Max Loading Height | 20.53 ft in (6255 mm) |
| Shipping Height Of Unit | 10.27 ft in (3130 mm) |
| Max Reach Along Ground | 30.21 ft in (9205 mm) |
| Max Vertical Wall Digging Depth | 17.44 ft in (5315 mm) |
| Max Digging Depth | 20 ft in (6095 mm) |
| Boom/Stick Option (Hex) 3 | Boom 18'8" (5700mm) / Stick 7'10" (2400mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.39 ft in (2860 mm) |
| Width To Outside Of Tracks | 10.11 ft in (3080 mm) |
| Length Of Track On Ground | 11.95 ft in (3640 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Removal Counterweight Clearance | 3.53 ft in (1075 mm) |
Undercarriage
| Track Gauge | 7.81 ft in (2380 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 7 psi (48.27 kPa) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D102 |
| Gross Power | 144.9 hp (108 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 358.9 cu in (5.9 L) |
Operational
| Operating Weight | 51169.3 lb (23210 kg) |
| Fuel Capacity | 81.9 gal (310 L) |
| Hydraulic System Fluid Capacity | 43.9 gal (166 L) |
| Hydraulic System Relief Valve Pressure | 5050 psi (34818.5 kPa) |
| Hydraulic Pump Flow Capacity | 108.9 gal/min (412 L/min) |
Swing Mechanism
| Swing Speed | 11.5 rpm |
Buckets
| Reference Bucket Capacity | 1.3 yd3 (1 m3) |
