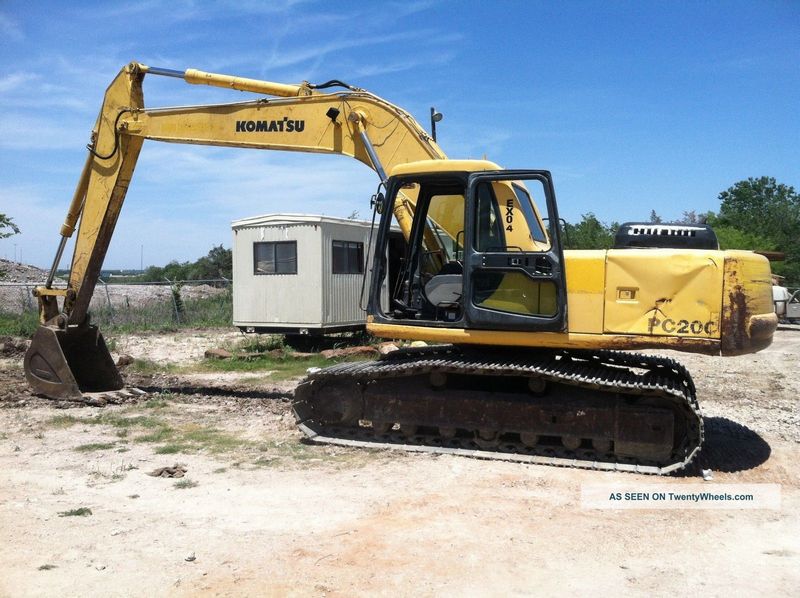

Komatsu PC200-6 EXCEL
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.21 ft in (9510 mm) |
| Shipping Height Of Unit | 9.8 ft in (2985 mm) |
| Max Cutting Height | 29.19 ft in (8895 mm) |
| Max Loading Height | 19.9 ft in (6065 mm) |
| Max Reach Along Ground | 28.61 ft in (8720 mm) |
| Max Vertical Wall Digging Depth | 16.29 ft in (4965 mm) |
| Max Digging Depth | 18.16 ft in (5535 mm) |
| Boom/Stick Option (Hex) 1 | Boom 18'8" (5700mm)/Stick 6'0" (1840mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.12 ft in (9485 mm) |
| Max Cutting Height | 29.7 ft in (9050 mm) |
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Max Loading Height | 20.53 ft in (6255 mm) |
| Max Reach Along Ground | 30.21 ft in (9205 mm) |
| Max Vertical Wall Digging Depth | 17.44 ft in (5315 mm) |
| Max Digging Depth | 20 ft in (6095 mm) |
| Boom/Stick Option (Hex) 2 | Boom 18'8" (5700mm)/Stick 7'11" (2410mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 30.93 ft in (9425 mm) |
| Max Cutting Height | 30.53 ft in (9305 mm) |
| Max Loading Height | 21.25 ft in (6475 mm) |
| Shipping Height Of Unit | 9.75 ft in (2970 mm) |
| Max Reach Along Ground | 31.83 ft in (9700 mm) |
| Max Vertical Wall Digging Depth | 19.62 ft in (5980 mm) |
| Max Digging Depth | 21.72 ft in (6620 mm) |
| Boom/Stick Option (Hex) 3 | Boom 18'8" (5700mm)/Stick 9'7" (2930mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 30.93 ft in (9425 mm) |
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Max Cutting Height | 31.83 ft in (9700 mm) |
| Max Loading Height | 22.87 ft in (6970 mm) |
| Max Reach Along Ground | 35.13 ft in (10705 mm) |
| Max Digging Depth | 25.35 ft in (7725 mm) |
| Max Vertical Wall Dig Depth | 23.22 ft in (7075 mm) |
| Boom/Stick Option (Hex) 4 | Boom 18'8" (5700mm)/Stick 13'4" (4055mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.54 ft in (2905 mm) |
| Width To Outside Of Tracks | 8.86 ft in (2700 mm) |
| Length Of Track On Ground | 10.73 ft in (3270 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Removal Counterweight Clearance | 3.56 ft in (1085 mm) |
Undercarriage
| Track Gauge | 7.22 ft in (2200 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Ground Pressure | 7.5 psi (51.72 kPa) |
| Max Travel Speed | 2.37 mph (3.8 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D102E |
| Gross Power | 127.4 hp (95 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 358.9 cu in (5.9 L) |
Operational
| Operating Weight | 42086.3 lb (19090 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Hydraulic System Fluid Capacity | 43.9 gal (166 L) |
| Hydraulic System Relief Valve Pressure | 4620 psi (31853.8 kPa) |
| Hydraulic Pump Flow Capacity | 108.9 gal/min (412 L/min) |
Swing Mechanism
| Swing Speed | 12.4 rpm |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.6 yd3 (1.2 m3) |
