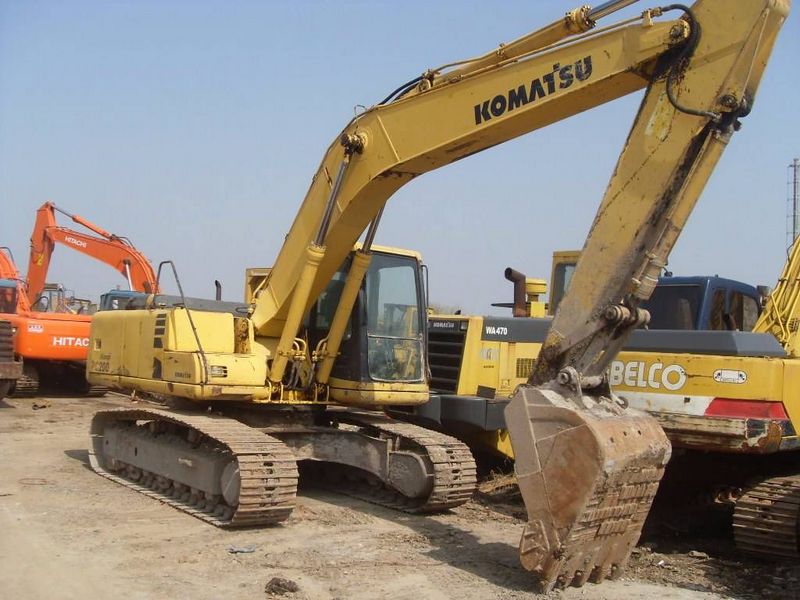

Komatsu PC200-1
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 30.98 ft in (9440 mm) |
| Shipping Height Of Unit | 9.4 ft in (2865 mm) |
| Max Cutting Height | 29.71 ft in (9055 mm) |
| Max Loading Height | 20.89 ft in (6365 mm) |
| Max Vertical Wall Digging Depth | 18.82 ft in (5735 mm) |
| Max Digging Depth | 21.12 ft in (6435 mm) |
Dimensions
| Ground Clearance | 1.5 ft in (455 mm) |
| Height To Top Of Cab | 9.4 ft in (2865 mm) |
| Width To Outside Of Tracks | 9.09 ft in (2770 mm) |
| Length Of Track On Ground | 10.04 ft in (3060 mm) |
| Tail Swing Radius | 9.39 ft in (2860 mm) |
Undercarriage
| Track Gauge | 7.09 ft in (2160 mm) |
| Shoe Size | 24.02 in (610 mm) |
| Max Travel Speed | 2.24 mph (3.6 km/h) |
| Ground Pressure | 6.54 psi (45.1 kPa) |
Engine
| Engine Make | 2238 |
| Engine Model | 6D105 |
| Gross Power | 105 hp (78.3 kw) |
| Displacement | 396 cu in (6.5 L) |
Operational
| Operating Weight | 40785.6 lb (18500 kg) |
| Fuel Capacity | 68.7 gal (260 L) |
| Hydraulic System Fluid Capacity | 76.7 gal (290 L) |
| Hydraulic System Relief Valve Pressure | 3560 psi (24545.4 kPa) |
| Hydraulic Pump Flow Capacity | 149 gal/min (564 L/min) |
Swing Mechanism
| Swing Speed | 8 rpm |
