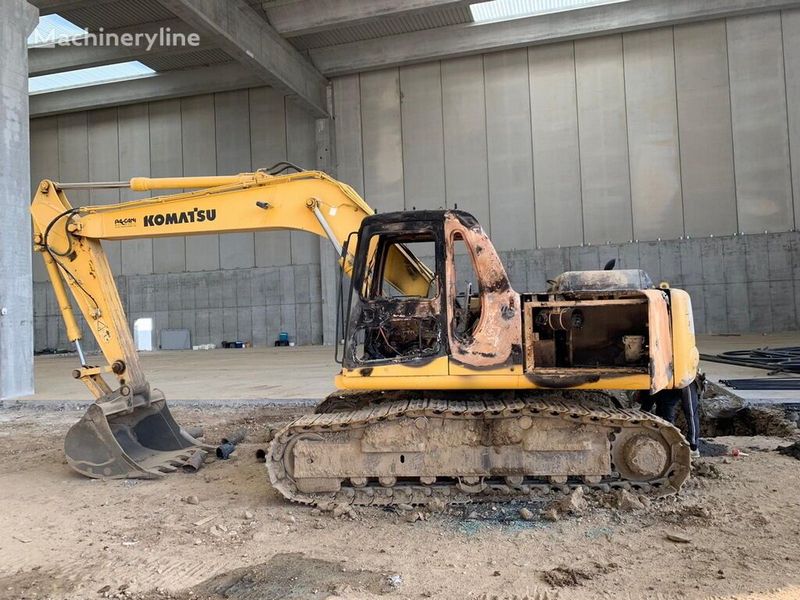

Komatsu PC180NLC-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 27.96 ft in (8520 mm) |
| Shipping Height Of Unit | 10.26 ft in (3125 mm) |
| Max Cutting Height | 28.79 ft in (8775 mm) |
| Max Loading Height | 20.12 ft in (6130 mm) |
| Max Reach Along Ground | 26.84 ft in (8180 mm) |
| Max Vertical Wall Digging Depth | 14.79 ft in (4506 mm) |
| Max Digging Depth | 17.07 ft in (5200 mm) |
| Boom/Stick Option (Hex) 1 | Monoboom w/ stick 1850mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 28.09 ft in (8560 mm) |
| Max Cutting Height | 29.01 ft in (8840 mm) |
| Shipping Height Of Unit | 9.72 ft in (2960 mm) |
| Max Loading Height | 20.44 ft in (6230 mm) |
| Max Reach Along Ground | 27.92 ft in (8510 mm) |
| Max Vertical Wall Digging Depth | 16.53 ft in (5036 mm) |
| Max Digging Depth | 18.41 ft in (5610 mm) |
| Boom/Stick Option (Hex) 2 | Monoboom w/ stick 2250mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 28.09 ft in (8560 mm) |
| Max Cutting Height | 29.2 ft in (8900 mm) |
| Max Loading Height | 20.74 ft in (6320 mm) |
| Shipping Height Of Unit | 9.73 ft in (2965 mm) |
| Max Reach Along Ground | 28.88 ft in (8800 mm) |
| Max Vertical Wall Digging Depth | 18.67 ft in (5690 mm) |
| Max Digging Depth | 19.56 ft in (5960 mm) |
| Boom/Stick Option (Hex) 3 | Monoboom w/ stick 2620mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 28.12 ft in (8570 mm) |
| Shipping Height Of Unit | 10.03 ft in (3055 mm) |
| Max Cutting Height | 29.71 ft in (9055 mm) |
| Max Loading Height | 21.23 ft in (6470 mm) |
| Max Reach Along Ground | 29.78 ft in (9075 mm) |
| Max Digging Depth | 20.51 ft in (6250 mm) |
| Max Vertical Wall Dig Depth | 18.85 ft in (5743 mm) |
| Boom/Stick Option (Hex) 4 | Monoboom w/ stick 2900mm |
Boom/Stick Option (Hex) 5
| Max Cutting Height | 29.74 ft in (9064 mm) |
| Max Loading Height | 20.96 ft in (6388 mm) |
| Max Reach Along Ground | 27.01 ft in (8232 mm) |
| Max Digging Depth | 16.57 ft in (5050 mm) |
| Boom/Stick Option (Hex) 5 | two piece boom w/ stick 1850mm |
| Max Vertical Wall Dig Depth | 13.37 ft in (4075 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 30.23 ft in (9214 mm) |
| Max Loading Height | 21.5 ft in (6553 mm) |
| Max Reach Along Ground | 28.17 ft in (8585 mm) |
| Max Digging Depth | 17.87 ft in (5445 mm) |
| Boom/Stick Option (Hex) 6 | two piece boom w/ stick 2250mm |
| Max Vertical Wall Dig Depth | 14.5 ft in (4417 mm) |
Dimensions
| Ground Clearance | 1.46 ft in (442 mm) |
| Height To Top Of Cab | 9.42 ft in (2871 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 10.7 ft in (3260 mm) |
| Tail Swing Radius | 7.93 ft in (2417 mm) |
| Removal Counterweight Clearance | 3.38 ft in (1030 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Drawbar Pull | 30424 lb (135.34 kN) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 7.1 psi (48.96 kPa) |
| Number Of Shoes Per Side | 45 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SA4D102E |
| Net Power | 107 hp (80 kw) |
| Gross Power | 113 hp (84.7 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 239.3 cu in (4 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 38801.4 lb (17600 kg) |
| Fuel Capacity | 66 gal (250 L) |
| Cooling System Fluid Capacity | 5.3 gal (20 L) |
| Hydraulic System Fluid Capacity | 31.7 gal (120 L) |
| Engine Oil Capacity | 4.3 gal (16 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.1 gal (4 L) |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 5049.3 psi (34813.6 kPa) |
| Hydraulic Pump Flow Capacity | 73 gal/min (276 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
Buckets
| Reference Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.5 yd3 (1.2 m3) |
