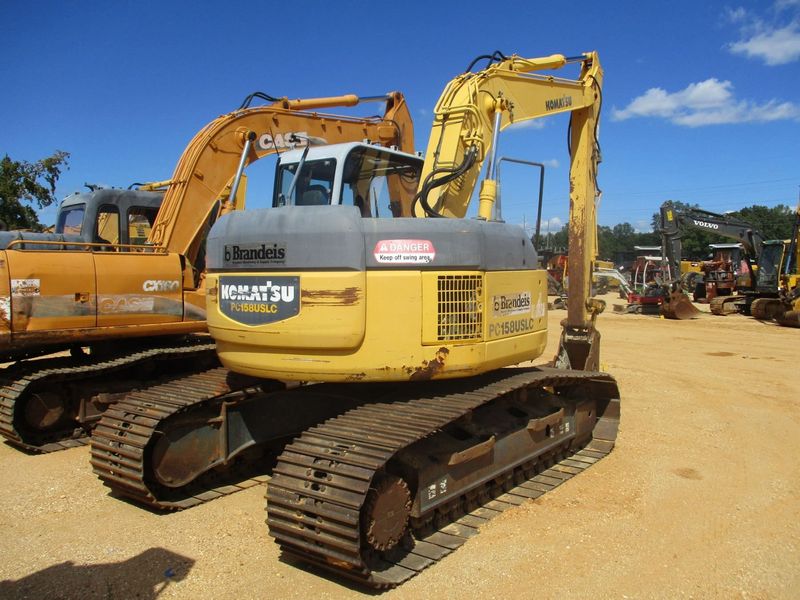

Komatsu PC158USLC-2
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 24.53 ft in (7475 mm) |
| Shipping Height Of Unit | 9.49 ft in (2890 mm) |
| Max Cutting Height | 31.03 ft in (9455 mm) |
| Max Loading Height | 22.84 ft in (6960 mm) |
| Max Reach Along Ground | 26.73 ft in (8145 mm) |
| Max Vertical Wall Digging Depth | 15.62 ft in (4760 mm) |
| Max Digging Depth | 17.54 ft in (5345 mm) |
| Boom/Stick Option (Hex) 1 | Arm - 2500 mm 8.2 ft in |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 24.28 ft in (7400 mm) |
| Max Cutting Height | 32.45 ft in (9890 mm) |
| Shipping Height Of Unit | 10.5 ft in (3200 mm) |
| Max Loading Height | 24.3 ft in (7405 mm) |
| Max Reach Along Ground | 28.37 ft in (8645 mm) |
| Max Vertical Wall Digging Depth | 17.13 ft in (5220 mm) |
| Max Digging Depth | 19.18 ft in (5845 mm) |
| Boom/Stick Option (Hex) 2 | Arm - 3000 mm, 9.10 ft in |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.85 ft in (3000 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 13.01 ft in (3965 mm) |
| Tail Swing Radius | 5.07 ft in (1545 mm) |
| Removal Counterweight Clearance | 3.38 ft in (1030 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Number Of Shoes Per Side | 44 |
| Drawbar Pull | 34822.91 lb (154.9 kN) |
| Number Of Track Rollers Per Side | 7 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 2.61 mph (4.2 km/h) |
| Ground Pressure | 5.55 psi (38.27 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Komatsu |
| Engine Model | S4D102E-1 |
| Gross Power | 104.6 hp (78 kw) |
| Net Power | 99.3 hp (74 kw) |
| Power Measured @ | 2300 rpm |
| Aspiration | Turbocharged |
| Displacement | 239.3 cu in (4 L) |
| Bore | 4.1 in (102 mm) |
| Stroke | 4.8 in (120 mm) |
Operational
| Operating Weight | 36376.3 lb (16500 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Cooling System Fluid Capacity | 4.9 gal (18.2 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Engine Oil Capacity | 4.7 gal (17.5 L) |
| Swing Drive Fluid Capacity | 0.7 gal (2.5 L) |
| Hydraulic Pump Flow Capacity | 62.7 gal/min (237 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
| Swing Torque | 24847 lb ft (33688.1 Nm) |
