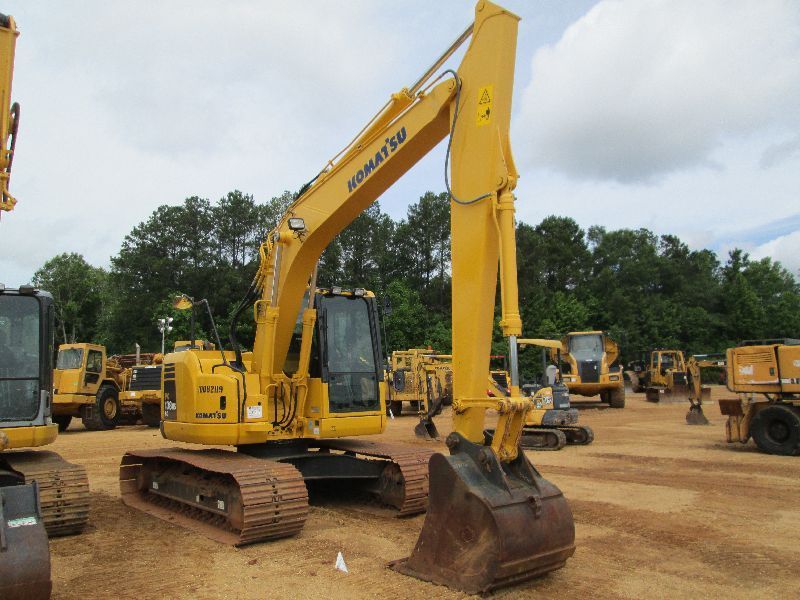

Komatsu PC138USLC-8
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 16.08 ft in (4900 mm) |
| Max Digging Depth | 17.98 ft in (5480 mm) |
| Boom/Stick Option (Hex) 1 | 2500 |
Boom/Stick Option (Hex) 2
| Max Vertical Wall Digging Depth | 17.52 ft in (5340 mm) |
| Max Digging Depth | 19.36 ft in (5900 mm) |
| Boom/Stick Option (Hex) 2 | 3000 |
Dimensions
| Ground Clearance | 1.3 ft in (395 mm) |
| Height To Top Of Cab | 9.24 ft in (2815 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 10.31 ft in (3140 mm) |
| Tail Swing Radius | 5.07 ft in (1545 mm) |
| Removal Counterweight Clearance | 2.96 ft in (900 mm) |
Undercarriage
| Number Of Track Rollers Per Side | 8 |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
| Drawbar Pull | 2810111.55 lb (12500 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 46 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SAA4D95LE-5 |
| Net Power | 92 hp (68 kw) |
| Gross Power | 97 hp (72 kw) |
| Aspiration | Turbocharged, and air-to-air aftercooled |
| Displacement | 199 cu in (3.3 L) |
Operational
| Operating Weight | 31504.1 lb (14290 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Cooling System Fluid Capacity | 0.7 gal (2.5 L) |
| Hydraulic System Fluid Capacity | 18.3 gal (69 L) |
| Engine Oil Capacity | 3 gal (11 L) |
| Swing Drive Fluid Capacity | 3.8 gal (14.2 L) |
Swing Mechanism
| Swing Torque | 2206.1 lb ft (2991 Nm) |
| Swing Speed | 11 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
