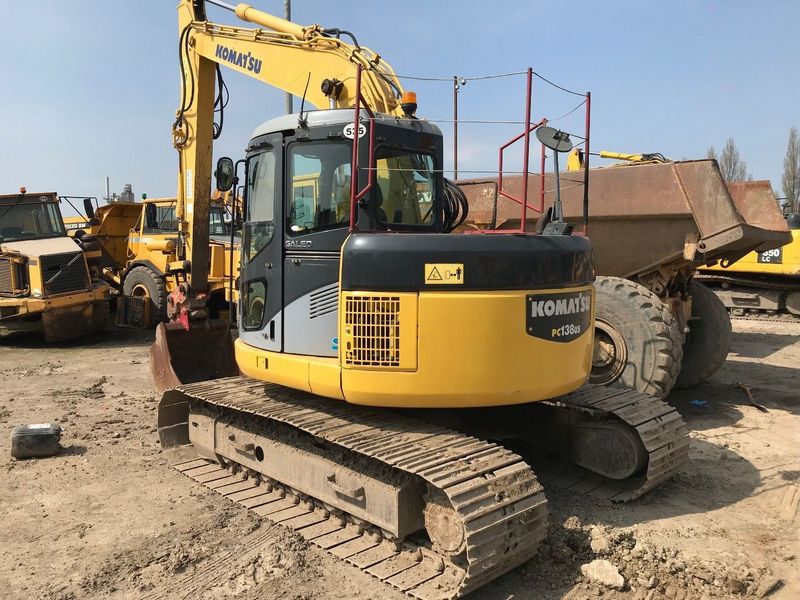

Komatsu PC138US-2
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 23.7 ft in (7225 mm) |
| Shipping Height Of Unit | 8.63 ft in (2630 mm) |
| Max Cutting Height | 29.6 ft in (9020 mm) |
| Max Loading Height | 21.41 ft in (6525 mm) |
| Max Reach Along Ground | 25.61 ft in (7805 mm) |
| Max Vertical Wall Digging Depth | 14.74 ft in (4490 mm) |
| Max Digging Depth | 16.64 ft in (5070 mm) |
| Boom/Stick Option (Hex) 1 | Monoboom 4600 mm w/ arm 2100mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 23.82 ft in (7260 mm) |
| Max Cutting Height | 30.65 ft in (9340 mm) |
| Shipping Height Of Unit | 9.35 ft in (2850 mm) |
| Max Loading Height | 22.45 ft in (6840 mm) |
| Max Reach Along Ground | 26.84 ft in (8180 mm) |
| Max Vertical Wall Digging Depth | 16.08 ft in (4900 mm) |
| Max Digging Depth | 17.98 ft in (5480 mm) |
| Boom/Stick Option (Hex) 2 | Monoboom 4600 mm w/ arm 2500mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 23.36 ft in (7120 mm) |
| Max Cutting Height | 31.83 ft in (9700 mm) |
| Max Loading Height | 24.12 ft in (7350 mm) |
| Shipping Height Of Unit | 10.46 ft in (3190 mm) |
| Max Reach Along Ground | 28.22 ft in (8600 mm) |
| Max Vertical Wall Digging Depth | 17.52 ft in (5340 mm) |
| Max Digging Depth | 19.36 ft in (5900 mm) |
| Boom/Stick Option (Hex) 3 | Monoboom 4600 mmw/ arm 3000mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 24.4 ft in (7440 mm) |
| Shipping Height Of Unit | 10.64 ft in (3245 mm) |
| Max Cutting Height | 27.89 ft in (8500 mm) |
| Max Loading Height | 20.3 ft in (6185 mm) |
| Max Reach Along Ground | 24.51 ft in (7470 mm) |
| Max Digging Depth | 16.8 ft in (5120 mm) |
| Boom/Stick Option (Hex) 4 | Offset boom w/ arm 2500mm |
| Max Vertical Wall Dig Depth | 10.41 ft in (3170 mm) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 23.57 ft in (7185 mm) |
| Shipping Height Of Unit | 9.92 ft in (3025 mm) |
| Max Cutting Height | 29.02 ft in (8845 mm) |
| Max Loading Height | 21.22 ft in (6465 mm) |
| Max Reach Along Ground | 26.25 ft in (8000 mm) |
| Max Digging Depth | 17.33 ft in (5280 mm) |
| Boom/Stick Option (Hex) 5 | Two-piece boom w/ arm 2100mm |
| Max Vertical Wall Dig Depth | 13.34 ft in (4065 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 29.96 ft in (9130 mm) |
| Max Loading Height | 22.15 ft in (6750 mm) |
| Shipping Length Of Unit | 23.6 ft in (7195 mm) |
| Max Reach Along Ground | 27.35 ft in (8335 mm) |
| Shipping Height Of Unit | 10.2 ft in (3110 mm) |
| Max Digging Depth | 18.64 ft in (5680 mm) |
| Boom/Stick Option (Hex) 6 | Two-piece boom w/ arm 2500mm |
| Max Vertical Wall Dig Depth | 14.59 ft in (4445 mm) |
Dimensions
| Ground Clearance | 1.3 ft in (395 mm) |
| Height To Top Of Cab | 9.24 ft in (2815 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 9.45 ft in (2880 mm) |
| Tail Swing Radius | 4.86 ft in (1480 mm) |
| Removal Counterweight Clearance | 2.96 ft in (900 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Ground Pressure | 6.1 psi (42.06 kPa) |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
| Drawbar Pull | 27558 lb (122.59 kN) |
| Number Of Track Rollers Per Side | 7 |
| Number Of Shoes Per Side | 43 |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SAA4D95LE-3 |
| Net Power | 88 hp (66 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 199 cu in (3.3 L) |
| Aspiration | Turbocharged with aftercooler |
Operational
| Operating Weight | 29718.4 lb (13480 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Cooling System Fluid Capacity | 4.9 gal (18.2 L) |
| Hydraulic System Fluid Capacity | 18.3 gal (69 L) |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.7 gal (2.5 L) |
| Alternator Supplied Amperage | 35 amps |
| Hydraulic System Relief Valve Pressure | 5049.3 psi (34813.6 kPa) |
| Hydraulic Pump Flow Capacity | 59.8 gal/min (226 L/min) |
Swing Mechanism
| Swing Speed | 10.5 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
