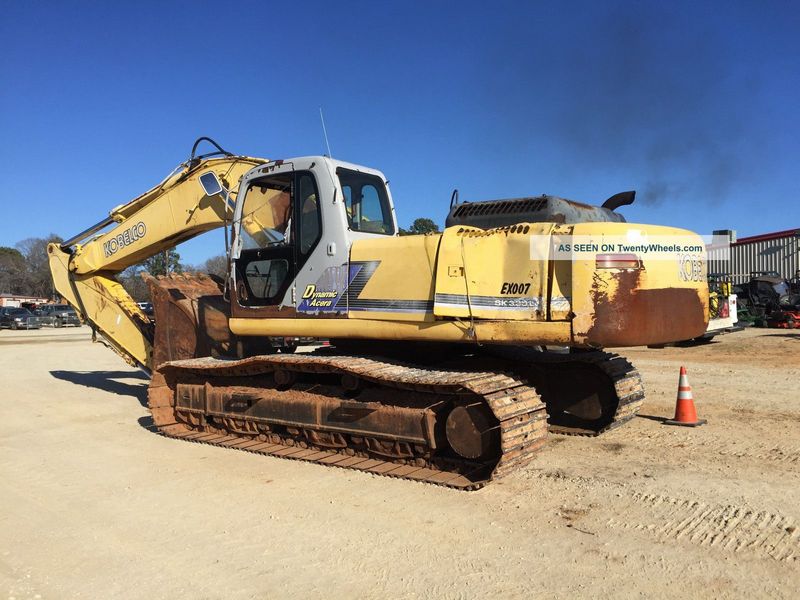

Kobelco SK330 LC
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.75 ft in (11200 mm) |
| Shipping Height Of Unit | 11.16 ft in (3400 mm) |
| Max Cutting Height | 35.37 ft in (10780 mm) |
| Max Loading Height | 24.87 ft in (7580 mm) |
| Max Reach Along Ground | 36.06 ft in (10990 mm) |
| Max Vertical Wall Digging Depth | 20.61 ft in (6280 mm) |
| Max Digging Depth | 23.63 ft in (7200 mm) |
| Boom/Stick Option (Hex) 1 | Stick w/ arm 10'10" (3300mm) |
Dimensions
| Ground Clearance | 2.5 ft in (760 mm) |
| Height To Top Of Cab | 10.25 ft in (3124.2 mm) |
| Width To Outside Of Tracks | 11.16 ft in (3400 mm) |
| Length Of Track On Ground | 13.29 ft in (4050 mm) |
| Tail Swing Radius | 11.49 ft in (3500 mm) |
| Removal Counterweight Clearance | 4.86 ft in (1480 mm) |
Undercarriage
| Track Gauge | 9.72 ft in (2960 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Ground Pressure | 5470 psi (37714.29 kPa) |
| Drawbar Pull | 63800 lb (283.8 kN) |
| Max Travel Speed | 3.61 mph (5.8 km/h) |
Engine
| Engine Make | 2251 |
| Engine Model | 6D16-TLEB |
| Gross Power | 247 hp (184.2 kw) |
| Net Power | 238 hp (177.5 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 460 cu in (7.6 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 80300 lb (36423.5 kg) |
| Fuel Capacity | 76.7 gal (290 L) |
| Hydraulic System Fluid Capacity | 92.8 gal (351 L) |
| Hydraulic System Relief Valve Pressure | 3990 psi (27510.1 kPa) |
| Hydraulic Pump Flow Capacity | 139.8 gal/min (529 L/min) |
Swing Mechanism
| Swing Speed | 9.1 rpm |
Buckets
| Reference Bucket Capacity | 1.9 yd3 (1.4 m3) |
| Minimum Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Maximum Bucket Capacity | 2.4 yd3 (1.9 m3) |
