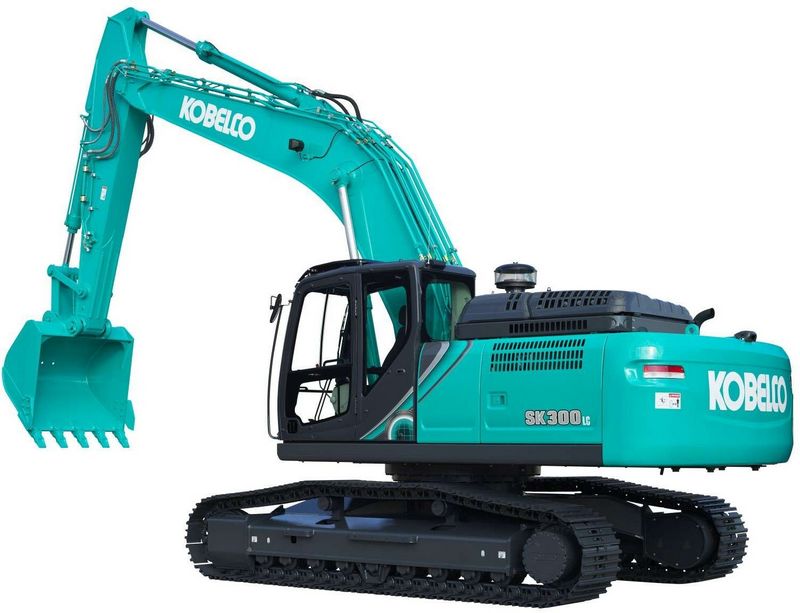

Kobelco SK300LC-10
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 20.5 ft in (6248.4 mm) |
| Max Digging Depth | 23.7 ft in (7223.76 mm) |
| Bucket Digging Force - Iso | 42264.08 lb (188 kN) |
| Bucket Digging Force - Sae | 37318.29 lb (166 kN) |
| Arm Crowd Force - Sae | 27426.69 lb (122 kN) |
| Boom/Stick Option (Hex) 1 | Boom - 20.4 ft in ,6.20 m / Standard Arm - 10.2 ft in , 3.10 m |
| Max Digging Height | 32.1 ft in (9784.08 mm) |
| Max Digging Reach | 35.8 ft in (10911.84 mm) |
| Max Digging Reach On Ground | 35 ft in (10668 mm) |
| Max Dumping Clearance | 23.4 ft in (7132.32 mm) |
| Min Dumping Clearance | 8.5 ft in (2590.81 mm) |
Boom/Stick Option (Hex) 2
| Max Vertical Wall Digging Depth | 23.3 ft in (7101.84 mm) |
| Max Digging Depth | 26.7 ft in (8138.16 mm) |
| Max Dumping Clearance | 24.9 ft in (7589.52 mm) |
| Max Digging Reach On Ground | 37.1 ft in (11308.08 mm) |
| Boom/Stick Option (Hex) 2 | Boom- 19.9 ft in , 6.02 m / Long Arm - 13.1 ft in 4.00 m |
| Max Digging Reach | 38.5 ft in (11734.8 mm) |
| Min Dumping Clearance | 5.6 ft in (1.71 m) |
Dimensions
| Ground Clearance | 1.68 ft in (510 mm) |
| Tail Swing Radius | 10.83 ft in (3300 mm) |
| Track Gauge | 8.5 ft in (2590 mm) |
| Overall Width -Upper Structure | 10.24 ft in (3120 mm) |
| Shoe Width | 2.63 ft in (800 mm) |
| Overall Height (To Top Of Boom) | 10.5 ft in (3200 mm) |
| Overall Height (To Top Of Cab) | 10.5 ft in (3200 mm) |
| Overall Length | 421.66 in (10710 mm) |
| Overall Length Of Crawler | 15.98 ft in (4870 mm) |
| Overall Width | 11.13 ft in (3390 mm) |
Undercarriage
| Max Travel Speed | 3.2 mph (5.15 km/h) |
Engine
| Emission Tier Level | EPA Tier IV Final |
| Number Of Cylinders | 6 |
| Engine Model | HINO J08EVV-KSDP |
| Engine Type | Water-cooled |
| Net Power | 252.2 hp (188 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 729.5 lb ft (989 Nm) |
| Displacement | 469 cu in (7.7 L) |
| Torque Measured @ | 1600 rpm |
| Bore | 4.5 in (112 mm) |
| Stroke | 5.2 in (130 mm) |
Capacities
| Travel Reduction | 4 gal (15 L) |
| Hydraulic Oil Tank | 108.4 gal (410 L) |
| Fuel Tank | 132.9 gal (503 L) |
| Diesel Exhaust Fluid (Def) Tank | 22 gal (83 L) |
| Cooling System | 9.3 gal (35 L) |
| Hydraulic System | 64.8 gal (245 L) |
| Engine Oil | 7.6 gal (28.5 L) |
Swing Mechanism
| Swing Radius | 10.9 ft in (3300 mm) |
| Swing Motor | Axial piston motor |
| Swing Torque | 72723 lb ft (98599.2 Nm) |
| Swing Speed | 10.3 rpm |
Weights
| Operating Weight | 67902.4 lb (30800 kg) |
Hydraulic System
| Power Boost | 5480 psi (37783.3 kPa) |
| Max. Discharge Flow | 130 gal/min (492 L/min) |
| Travel Circuit | 4970 psi (34267 kPa) |
| Swing Circuit | 4210 psi (29027 kPa) |
| Boom Cylinder | 5.6 in (140 mm) |
| Bucket Cylinder | 0.5 ft in (130 mm) |
| Control Valve | 8-spool |
| Pump Type | Two variable displacement pumps + One gear pump |
