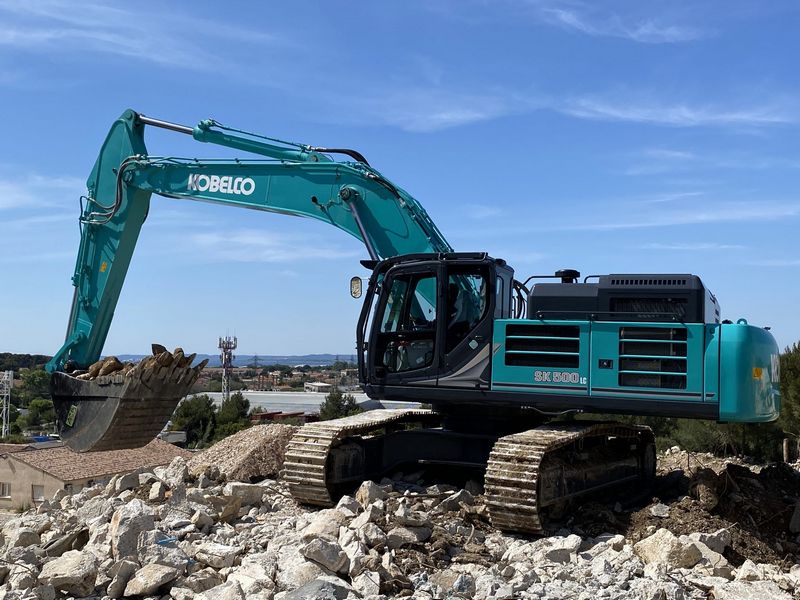

Kobelco SK500LC-10
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 23.4 ft in (7132.32 mm) |
| Max Digging Depth | 25.7 ft in (7833.36 mm) |
| Min Dumping Clearance | 9.1 ft in (2773.68 mm) |
| Bucket Digging Force - Iso | 65644.21 lb (292 kN) |
| Bucket Digging Force - Sae | 57551.09 lb (256 kN) |
| Max Digging Reach On Ground | 38.1 ft in (11612.88 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 23.0 ft in ,7.00 m / Standard Arm - 11.4 ft in , 3.45 m |
| Arm Crowd Force - Sae | 48109.11 lb (214 kN) |
| Max Digging Height | 35.11 ft in (10701.53 mm) |
| Max Dumping Clearance | 24.1 ft in (7345.68 mm) |
| Max Digging Reach | 39.71 ft in (12100.56 mm) |
Boom/Stick Option (Hex) 2
| Max Vertical Wall Digging Depth | 24.7 ft in (7528.56 mm) |
| Max Digging Depth | 27.7 ft in (8442.96 mm) |
| Max Digging Reach On Ground | 40.8 ft in (12435.84 mm) |
| Boom/Stick Option (Hex) 2 | Boom- 23.0 ft in , 7.00 m / Semi long Arm - 13.3 ft in , 4.04 m |
| Max Dumping Clearance | 25.7 ft in (7833.36 mm) |
| Min Dumping Clearance | 7.2 ft in (2.2 m) |
| Max Digging Reach | 41.4 ft in (12618.72 mm) |
Boom/Stick Option (Hex) 3
| Max Vertical Wall Digging Depth | 27.7 ft in (8442.96 mm) |
| Max Digging Depth | 30.5 ft in (9296.4 mm) |
| Boom/Stick Option (Hex) 3 | Boom - 23.0 ft in , 7.00 m / Long Arm- 16.1 ft in , 4.90 m |
| Max Dumping Clearance | 27.3 ft in (8321.05 mm) |
| Max Digging Reach | 44.3 ft in (13502.64 mm) |
| Min Dumping Clearance | 4.41 ft in (1341.12 mm) |
| Max Digging Reach On Ground | 43.7 ft in (13319.76 mm) |
Boom/Stick Option (Hex) 4
| Max Digging Depth | 21.3 ft in (6492.24 mm) |
| Boom/Stick Option (Hex) 4 | Boom - 20.8 ft in , 6.30 m / ME Arm - 7.10 ft in |
| Max Digging Reach On Ground | 34.11 ft in (10396.73 mm) |
| Max Digging Reach | 35.8 ft in (10911.84 mm) |
| Max Vertical Wall Dig Depth | 13.1 ft in (3992.88 mm) |
| Max. Dumping Clearance | 22.8 ft in (6.95 m) |
| Min Dumping Clearance | 10.2 ft in (3108.96 mm) |
Dimensions
| Ground Clearance | 1.68 ft in (510 mm) |
| Tail Swing Radius | 12.47 ft in (3800 mm) |
| Track Gauge | 9.03 ft in (2750 mm) |
| Overall Height (To Top Of Cab) | 11.09 ft in (3380 mm) |
| Overall Length | 477.96 in (12140 mm) |
| Overall Length Of Crawler | 17.92 ft in (5460 mm) |
| Overall Width | 11.98 ft in (3650 mm) |
| Overall Width -Upper Structure | 10.21 ft in (3110 mm) |
| Shoe Width | 2.96 ft in (900 mm) |
| Overall Height (To Top Of Boom) | 11.72 ft in (3570 mm) |
Undercarriage
| Max Travel Speed | 3.4 mph (5.48 km/h) |
Engine
| Emission Tier Level | Tier IV final certified |
| Number Of Cylinders | 6 |
| Engine Model | HINO P11C-VN |
| Engine Type | Diesel engine with turbocharger and intercooler |
| Net Power | 363.5 hp (271 kw) |
| Power Measured @ | 1850 rpm |
| Max Torque | 1084.3 lb ft (1470 Nm) |
| Displacement | 642 cu in (10.6 L) |
| Torque Measured @ | 1400 rpm |
| Bore | 4.9 in (122 mm) |
| Stroke | 6 in (150 mm) |
Capacities
| Travel Reduction | 8 gal (30 L) |
| Hydraulic Oil Tank | 98 gal (370.8 L) |
| Fuel Tank | 168.6 gal (638 L) |
| Diesel Exhaust Fluid (Def) Tank | 22 gal (83 L) |
| Cooling System | 12.6 gal (47.4 L) |
| Hydraulic System | 166.7 gal (631 L) |
| Engine Oil | 11.3 gal (42.5 L) |
Swing Mechanism
| Swing Radius | 12.5 ft in (3800 mm) |
| Swing Motor | Axial piston motor |
| Swing Torque | 134980 lb ft (183008.4 Nm) |
| Swing Speed | 7.6 rpm |
Weights
| Operating Weight | 117947.4 lb (53500 kg) |
Hydraulic System
| Power Boost | 4970 psi (34267 kPa) |
| Max. Discharge Flow | 195.5 gal/min (740 L/min) |
| Travel Circuit | 4970 psi (34267 kPa) |
| Swing Circuit | 3740 psi (25786.4 kPa) |
| Boom Cylinder | 331.8 in (8427 mm) |
| Bucket Cylinder | 22.3 ft in (6768 mm) |
| Control Valve | 8-spool |
| Pump Type | Two variable displacement pumps + One gear pump |
