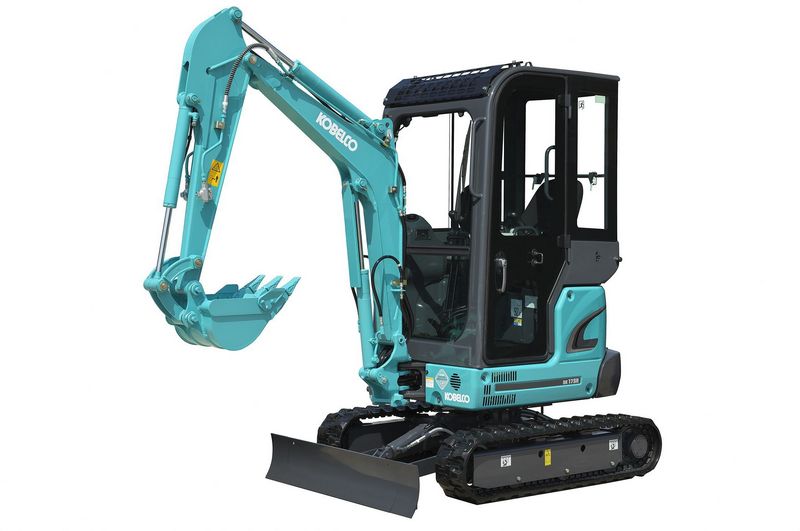

Kobelco SK17SR-3
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Undercarriage
| Drawbar Pull | 4473.7 lb (19.9 kN) |
| Ground Pressure | 4 psi (27.58 kPa) |
Engine
| Fuel | diesel |
| Injection System | direct injection |
| Fuel Tank | 5.9 gal (22 L) |
| Engine Model | L3E–W231KBS |
| Max Torque | 39.5 lb ft (53.5 Nm) |
| Displacement | 58.1 cu in (1 L) |
Operational
| Operating Weight | 3637.7 lb (1650 kg) |
| Hydraulic System Fluid Capacity | 4 gal (15 L) |
| Hydraulic Pump Flow Capacity | 2.4 gal/min (9 L/min) |
Swing Mechanism
| Swing Speed | 8.6 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Bucket Digging Force - Sae | 2922.6 lb (13 kN) |
| Arm Digging Force | 2158.2 lb (9.6 kN) |
Blade
| Blade Height Up | 1 ft in (280 mm) |
| Blade Height Down | 0.9 ft in (270 mm) |
| Blade Lift Height | 9.9 in (250 mm) |
Hydraulic System
| Max. Discharge Flow | 8.7 gal/min (32.6 L/min) |
| Max. Discharge Pressure | 3130 psi (21580.6 kPa) |
Blade
| Blade Width | 1320 |
Hydraulic System
| Pump Type | Two variable displacement pumps |
Boom
| Boom Swing Left | 65 degrees |
| Boom Swing Right | 55 degrees |
