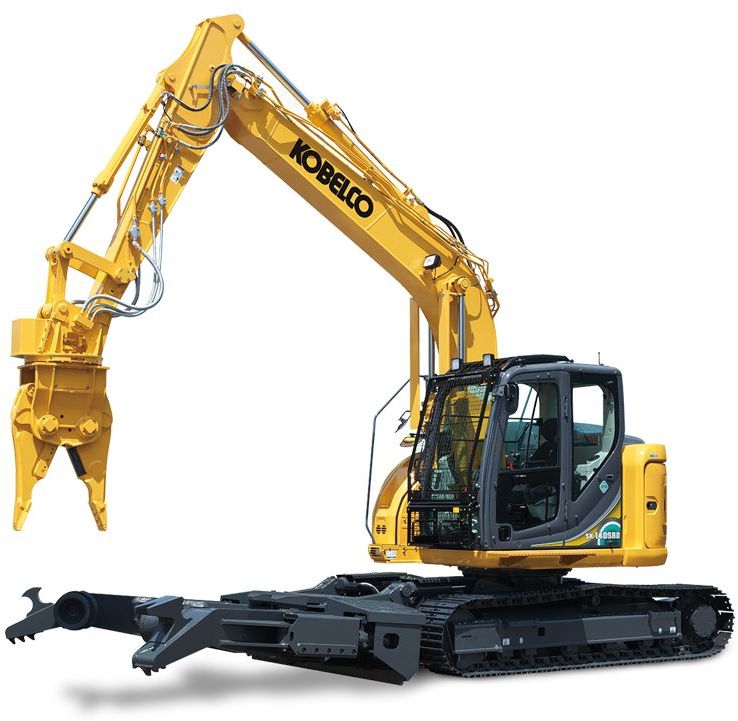

Kobelco SK140SRD-5 CAR DEMO
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Dimensions
| Height To Top Of Cab | 10.04 ft in (3060 mm) |
| Overall Length Of Crawler | 35.34 ft in (10770 mm) |
| Overall Width | 2490 mm |
| Shoe Width | 1.65 ft in (500 mm) |
| Turning Radius | 5.3 ft in (1.62 m) |
Undercarriage
| Ground Pressure | 9.1 psi (62.75 kPa) |
Engine
| Swing Speed | 11 rpm |
| Number Of Cylinders | 4 |
| Engine Model | ISUZU AR-4JJ1XASK-02 |
| Engine Type | 4 cycle, water cooled, overhead valve, vertical inline, direct injection type, with turbo-charger. Tier IV certified |
| Gross Power | 95.6 hp (71.3 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 256 lb ft (347 Nm) |
| Displacement | 183 cu in (3 L) |
| Torque Measured @ | 1800 rpm |
| Bore | 3.8 in (95.4 mm) |
| Stroke | 4.2 in (104.9 mm) |
Operational
| Operating Weight | 44313 lb (20100 kg) |
| Fuel Capacity | 50.2 gal (190.1 L) |
Hydraulic System
| Hydraulic System Tank | 44.4 gal (168 L) |
| Maxpumpflow | 68.7 gal/min (260 L/min) |
| Relief Valve Setting | Two variable displacement pumps + 1 gear pump |
| Pump Type | Two variable displacement piston pumps |
| Swing Motor | axial piston motor |
