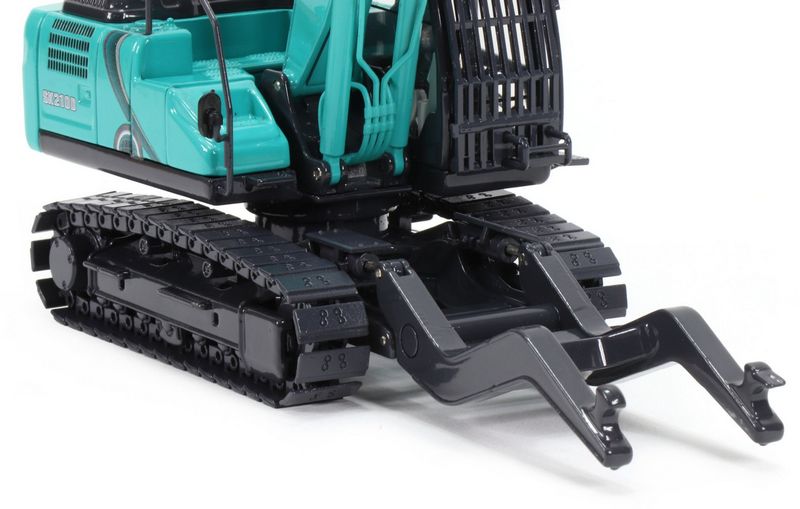

Kobelco SK210D-10 CAR DEMO
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Dimensions
| Height To Top Of Cab | 12.21 ft in (3720 mm) |
| Tail Swing Radius | 9.55 ft in (2910 mm) |
| Overall Length Of Crawler | 42.49 ft in (12950 mm) |
| Overall Length | 31.6 ft in (9630 mm) |
| Overall Width | 2800 mm |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.7 mph (5.96 km/h) |
| Ground Pressure | 9.7 psi (66.88 kPa) |
Engine
| Swing Torque | 52.8 lb ft (71.5 Nm) |
| Number Of Cylinders | 4 |
| Engine Model | HINO J05EUM-KSSC |
| Engine Type | Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler(Complies with EU (NRMM) Stage IV, EPA Tier IV Final. |
| Gross Power | 160 hp (119.4 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 472.1 lb ft (640 Nm) |
| Displacement | 312.6 cu in (5.2 L) |
| Torque Measured @ | 1600 rpm |
| Bore | 4.5 in (112 mm) |
| Stroke | 5.2 in (130 mm) |
Operational
| Def Tank Capacity | 21.9 gal (83 L) |
| Gradeability-Laden | 70 % |
| Operating Weight | 66138.7 lb (30000 kg) |
| Fuel Capacity | 84.5 gal (319.9 L) |
Performance
| Drawbar Pull Force | 51500 lb (229.1 kN) |
Hydraulic System
| Hydraulic System Tank | 64.5 gal (244.2 L) |
| Maxpumpflow | 116.3 gal/min (440 L/min) |
| Pump Type | Two variable displacement pumps + 1 gear pump |
| Swing Motor | axial piston motor |
