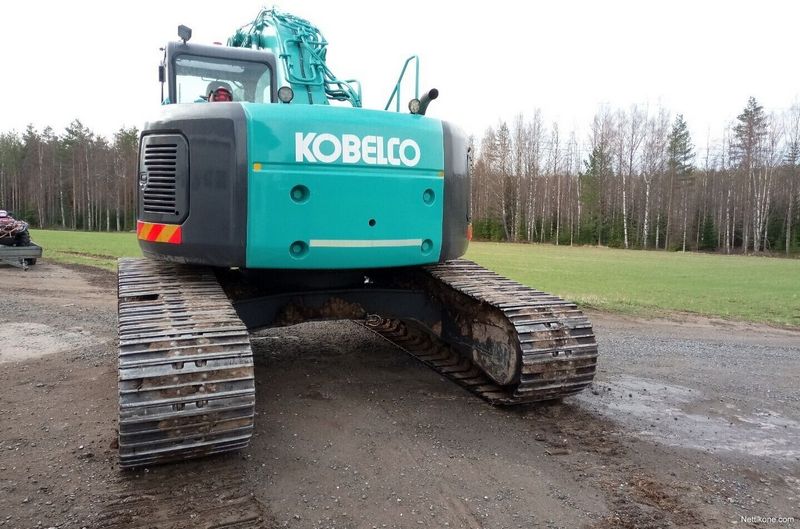

Kobelco 235SR LC
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 29.17 ft in (8890 mm) |
| Shipping Height Of Unit | 10.37 ft in (3160 mm) |
| Max Cutting Height | 37.05 ft in (11290 mm) |
| Max Loading Height | 27.63 ft in (8420 mm) |
| Max Reach Along Ground | 31.7 ft in (9660 mm) |
| Max Vertical Wall Digging Depth | 19.89 ft in (6060 mm) |
| Max Digging Depth | 21.99 ft in (6700 mm) |
| Boom/Stick Option (Hex) 1 | Stick 9'8" (2940mm) |
Dimensions
| Ground Clearance | 1.5 ft in (455 mm) |
| Height To Top Of Cab | 10.14 ft in (3090 mm) |
| Width To Outside Of Tracks | 11.13 ft in (3390 mm) |
| Length Of Track On Ground | 12.64 ft in (3850 mm) |
| Tail Swing Radius | 5.91 ft in (1800 mm) |
| Removal Counterweight Clearance | 3.5 ft in (1065 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Ground Pressure | 5.6 psi (38.62 kPa) |
| Drawbar Pull | 51600 lb (229.53 kN) |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
Engine
| Engine Make | 2251 |
| Engine Model | 6D34-TLED |
| Net Power | 148 hp (110.4 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 358 cu in (5.9 L) |
Operational
| Operating Weight | 57300 lb (25990.9 kg) |
| Fuel Capacity | 77 gal (291.5 L) |
| Cooling System Fluid Capacity | 5.1 gal (19 L) |
| Hydraulic System Fluid Capacity | 61 gal (231 L) |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Swing Drive Fluid Capacity | 2 gal (7.5 L) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 111 gal/min (420 L/min) |
Swing Mechanism
| Swing Torque | 58267.5 lb ft (79000 Nm) |
| Swing Speed | 11 rpm |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1.7 yd3 (1.3 m3) |
