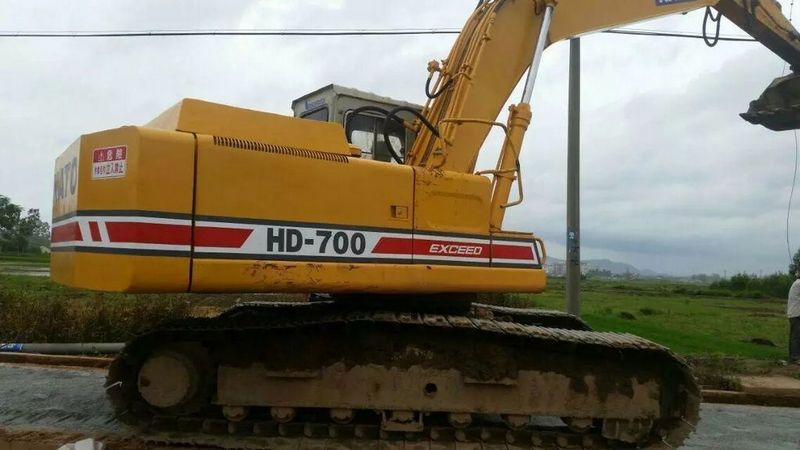

Kato HD700VII
Browse All Kato or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 31.63 ft in (9640 mm) |
| Max Loading Height | 22.09 ft in (6730 mm) |
| Max Reach Along Ground | 30.75 ft in (9370 mm) |
| Max Vertical Wall Digging Depth | 18.38 ft in (5600 mm) |
| Max Digging Depth | 20.08 ft in (6120 mm) |
| Boom/Stick Option (Hex) 1 | Short arm 2400mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.4 ft in (9570 mm) |
| Max Cutting Height | 32.09 ft in (9780 mm) |
| Shipping Height Of Unit | 9.55 ft in (2910 mm) |
| Max Loading Height | 22.64 ft in (6900 mm) |
| Max Reach Along Ground | 32.22 ft in (9820 mm) |
| Max Vertical Wall Digging Depth | 20.02 ft in (6100 mm) |
| Max Digging Depth | 21.72 ft in (6620 mm) |
| Boom/Stick Option (Hex) 2 | Standard arm 2900mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 33.7 ft in (10270 mm) |
| Max Loading Height | 24.09 ft in (7340 mm) |
| Max Reach Along Ground | 35.34 ft in (10770 mm) |
| Max Vertical Wall Digging Depth | 23.3 ft in (7100 mm) |
| Max Digging Depth | 25.04 ft in (7630 mm) |
| Boom/Stick Option (Hex) 3 | Long arm 3900mm |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Height To Top Of Cab | 9.55 ft in (2910 mm) |
| Width To Outside Of Tracks | 9.26 ft in (2820 mm) |
| Length Of Track On Ground | 10.5 ft in (3200 mm) |
| Tail Swing Radius | 9.16 ft in (2790 mm) |
| Removal Counterweight Clearance | 3.32 ft in (1010 mm) |
Undercarriage
| Track Gauge | 7.29 ft in (2220 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Drawbar Pull | 39000 lb (173.49 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 48 |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 6.25 psi (43.1 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6D31T |
| Gross Power | 123.4 hp (92 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 318 lb ft (431.2 Nm) |
| Displacement | 302 cu in (5 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1700 rpm |
Operational
| Operating Weight | 40785.6 lb (18500 kg) |
| Fuel Capacity | 84.6 gal (320 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Hydraulic System Fluid Capacity | 74 gal (280 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Swing Drive Fluid Capacity | 1.4 gal (5 L) |
| Alternator Supplied Amperage | 30 amps |
| Hydraulic System Relief Valve Pressure | 4760 psi (32819.1 kPa) |
| Hydraulic Pump Flow Capacity | 121.6 gal/min (460 L/min) |
Swing Mechanism
| Swing Speed | 13.5 rpm |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.9 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.6 yd3 (1.2 m3) |
