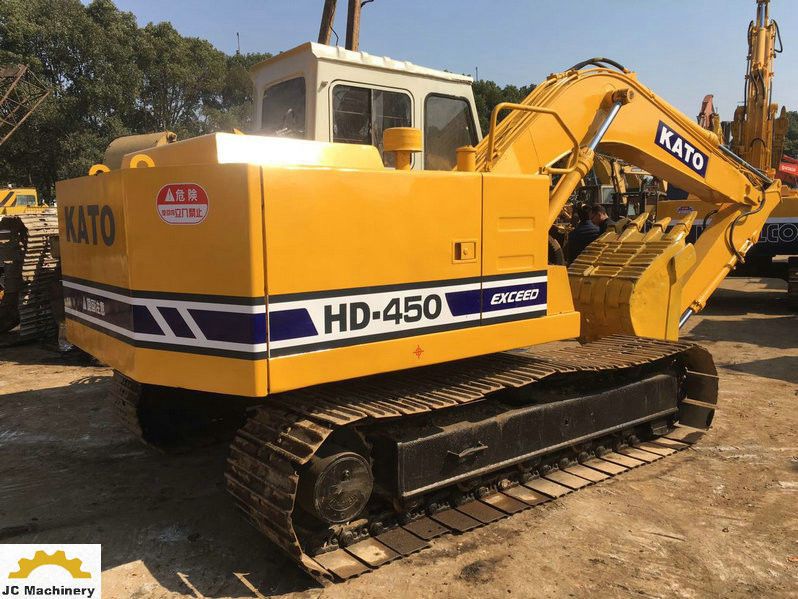

Kato HD450VII
Browse All Kato or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 27.33 ft in (8330 mm) |
| Max Loading Height | 19.59 ft in (5970 mm) |
| Max Reach Along Ground | 25.5 ft in (7770 mm) |
| Max Vertical Wall Digging Depth | 15.16 ft in (4620 mm) |
| Max Digging Depth | 16.97 ft in (5170 mm) |
| Boom/Stick Option (Hex) 1 | Short arm 2100mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 28.09 ft in (8560 mm) |
| Max Loading Height | 20.35 ft in (6200 mm) |
| Max Reach Along Ground | 26.74 ft in (8150 mm) |
| Max Vertical Wall Digging Depth | 16.47 ft in (5020 mm) |
| Max Digging Depth | 18.28 ft in (5570 mm) |
| Boom/Stick Option (Hex) 2 | Standard arm 2500mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 28.88 ft in (8800 mm) |
| Max Loading Height | 21.13 ft in (6440 mm) |
| Max Reach Along Ground | 28.22 ft in (8600 mm) |
| Max Vertical Wall Digging Depth | 18.18 ft in (5540 mm) |
| Max Digging Depth | 19.92 ft in (6070 mm) |
| Boom/Stick Option (Hex) 3 | Long arm 3000mm |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 8.83 ft in (2690 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 9.16 ft in (2790 mm) |
| Tail Swing Radius | 6.96 ft in (2120 mm) |
| Removal Counterweight Clearance | 2.89 ft in (880 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Number Of Track Rollers Per Side | 7 |
| Drawbar Pull | 20500 lb (20500 -) |
| Ground Pressure | 5.4 psi (37.24 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Shoes Per Side | 43 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | C 4D31T |
| Gross Power | 87.2 hp (65 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 220 lb ft (298.3 Nm) |
| Displacement | 201.3 cu in (3.3 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1700 rpm |
Operational
| Operating Weight | 25573.7 lb (11600 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 4.5 gal (17 L) |
| Hydraulic System Fluid Capacity | 38.4 gal (145 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 3.2 gal (12 L) |
| Swing Drive Fluid Capacity | 0.6 gal (2.2 L) |
| Alternator Supplied Amperage | 25 amps |
| Hydraulic System Relief Valve Pressure | 4760 psi (32819.1 kPa) |
| Hydraulic Pump Flow Capacity | 63.5 gal/min (240 L/min) |
Swing Mechanism
| Swing Speed | 12.5 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.9 yd3 (0.7 m3) |
