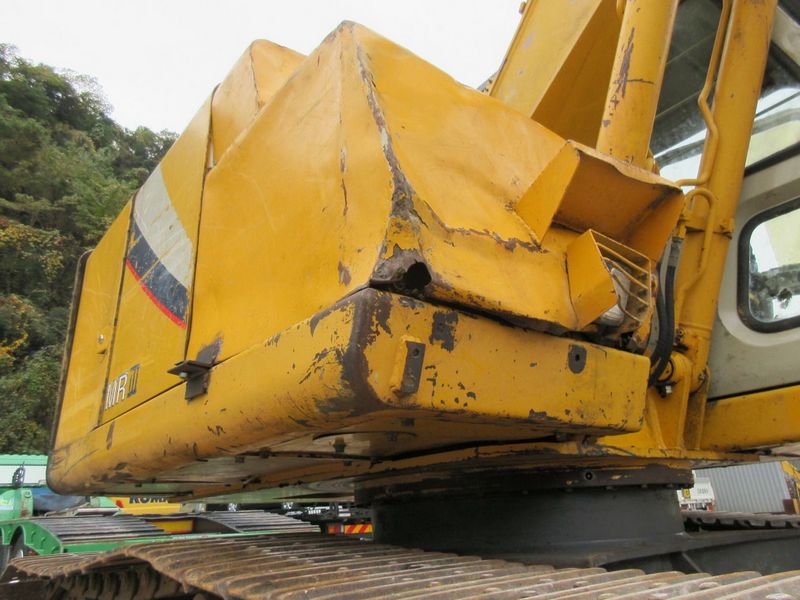

Kato HD513MRIII
Browse All Kato or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 28.25 ft in (8610 mm) |
| Max Loading Height | 20.48 ft in (6240 mm) |
| Max Vertical Wall Digging Depth | 15 ft in (4570 mm) |
| Max Digging Depth | 17 ft in (5180 mm) |
| Boom/Stick Option (Hex) 1 | Stick 2100mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 29.04 ft in (8850 mm) |
| Max Loading Height | 21.26 ft in (6480 mm) |
| Max Vertical Wall Digging Depth | 16.28 ft in (4960 mm) |
| Max Digging Depth | 18.31 ft in (5580 mm) |
| Boom/Stick Option (Hex) 2 | Stick 2500mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 29.96 ft in (9130 mm) |
| Max Loading Height | 22.22 ft in (6770 mm) |
| Max Vertical Wall Digging Depth | 17.52 ft in (5340 mm) |
| Max Digging Depth | 19.99 ft in (6090 mm) |
| Boom/Stick Option (Hex) 3 | Stick 3000mm |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.06 ft in (2760 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 9.42 ft in (2870 mm) |
| Tail Swing Radius | 5.58 ft in (1700 mm) |
| Removal Counterweight Clearance | 2.89 ft in (880 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Ground Pressure | 5.95 psi (41 kPa) |
Engine
| Engine Make | 2251 |
| Engine Model | C 4D34-TLE2A |
| Gross Power | 91.2 hp (68 kw) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 29101.1 lb (13200 kg) |
| Fuel Capacity | 55.5 gal (210 L) |
| Hydraulic System Fluid Capacity | 36 gal (136 L) |
| Hydraulic System Relief Valve Pressure | 4771.8 psi (32900 kPa) |
Swing Mechanism
| Swing Speed | 12.5 rpm |
Buckets
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.8 yd3 (0.6 m3) |
