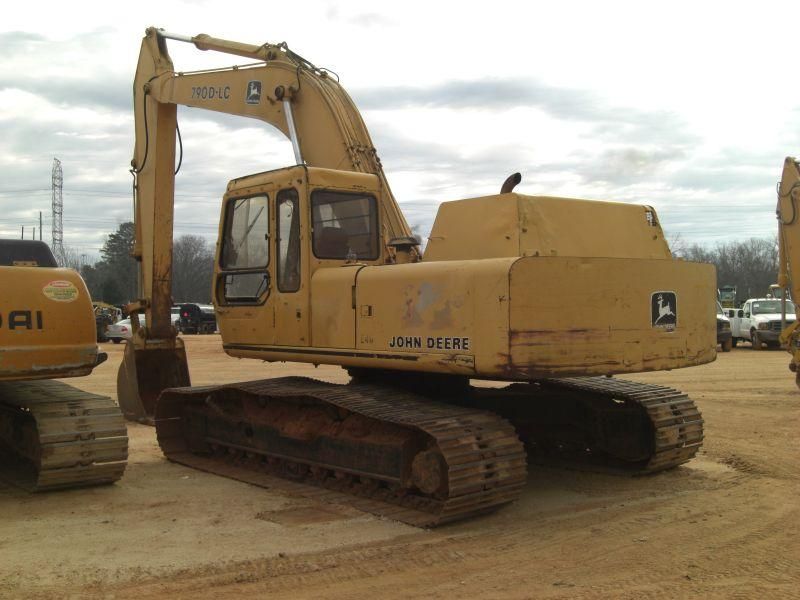

John Deere 790D
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 33.58 ft in (10240 mm) |
| Shipping Height Of Unit | 10.5 ft in (3220 mm) |
| Max Cutting Height | 30.17 ft in (9200 mm) |
| Max Loading Height | 20.83 ft in (6350 mm) |
| Max Reach Along Ground | 31.25 ft in (9520 mm) |
| Max Vertical Wall Digging Depth | 17.08 ft in (5210 mm) |
| Max Digging Depth | 20.43 ft in (6210 mm) |
| Boom/Stick Option (Hex) 1 | opt. Short Arm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 33.17 ft in (10110 mm) |
| Max Cutting Height | 31.08 ft in (9470 mm) |
| Shipping Height Of Unit | 9.83 ft in (3000 mm) |
| Max Loading Height | 21.58 ft in (6590 mm) |
| Max Reach Along Ground | 33.25 ft in (10130 mm) |
| Max Vertical Wall Digging Depth | 19.75 ft in (6010 mm) |
| Max Digging Depth | 22.58 ft in (6880 mm) |
| Boom/Stick Option (Hex) 2 | Standard Arm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 33.33 ft in (10170 mm) |
| Max Cutting Height | 31.67 ft in (9700 mm) |
| Max Loading Height | 22.33 ft in (6820 mm) |
| Shipping Height Of Unit | 10.33 ft in (3160 mm) |
| Max Reach Along Ground | 35.17 ft in (10730 mm) |
| Max Vertical Wall Digging Depth | 21.83 ft in (6660 mm) |
| Max Digging Depth | 24.67 ft in (7520 mm) |
| Boom/Stick Option (Hex) 3 | opt. Long Arm |
Dimensions
| Ground Clearance | 1.42 ft in (445 mm) |
| Height To Top Of Cab | 9.58 ft in (2930 mm) |
| Width To Outside Of Tracks | 9.83 ft in (2990 mm) |
| Length Of Track On Ground | 11.33 ft in (3450 mm) |
| Tail Swing Radius | 9.67 ft in (2930 mm) |
| Removal Counterweight Clearance | 3.58 ft in (1100 mm) |
Undercarriage
| Track Gauge | 7.83 ft in (2390 mm) |
| Shoe Size | 24 in (600 mm) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Ground Pressure | 7.27 psi (50.1 kPa) |
| Number Of Shoes Per Side | 47 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Drawbar Pull | 37250 lb (165.7 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6466A |
| Gross Power | 165 hp (123 kw) |
| Net Power | 155 hp (116 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 510 lb ft (692 Nm) |
| Displacement | 466 cu in (7.7 L) |
| Aspiration | Turbocharged with aftercooler |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 53143 lb (24105 kg) |
| Fuel Capacity | 82 gal (310 L) |
| Cooling System Fluid Capacity | 34 gal (32 L) |
| Hydraulic System Fluid Capacity | 71 gal (270 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 25 gal (24 L) |
| Swing Drive Fluid Capacity | 8 gal (7.5 L) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34425 kPa) |
| Hydraulic Pump Flow Capacity | 124.8 gal/min (472 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
Buckets
| Reference Bucket Capacity | 1.4 yd3 (1 m3) |
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1.4 yd3 (1 m3) |
