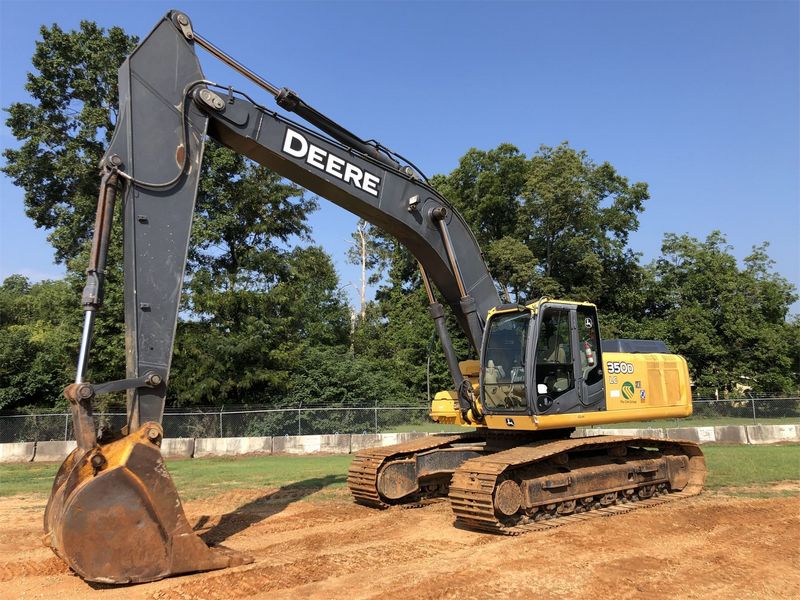

John Deere 350D LC
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.5 ft in (11130 mm) |
| Shipping Height Of Unit | 11.42 ft in (3470 mm) |
| Max Cutting Height | 32.75 ft in (9990 mm) |
| Max Loading Height | 22.75 ft in (6940 mm) |
| Max Reach Along Ground | 34 ft in (10360 mm) |
| Max Vertical Wall Digging Depth | 18.08 ft in (5510 mm) |
| Max Digging Depth | 22.42 ft in (6840 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 8ft. 9in. 2.66m |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.08 ft in (11000 mm) |
| Max Cutting Height | 34 ft in (10360 mm) |
| Shipping Height Of Unit | 10.75 ft in (3270 mm) |
| Max Loading Height | 23.75 ft in (7240 mm) |
| Max Reach Along Ground | 35.75 ft in (10890 mm) |
| Max Vertical Wall Digging Depth | 21.08 ft in (6420 mm) |
| Max Digging Depth | 24.25 ft in (7380 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 10ft. 6in. 3.2m |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.42 ft in (11090 mm) |
| Max Cutting Height | 35.24 ft in (10750 mm) |
| Max Loading Height | 25 ft in (7630 mm) |
| Shipping Height Of Unit | 11.83 ft in (3600 mm) |
| Max Reach Along Ground | 38.29 ft in (11670 mm) |
| Max Vertical Wall Digging Depth | 23.83 ft in (7270 mm) |
| Max Digging Depth | 26.83 ft in (8180 mm) |
| Boom/Stick Option (Hex) 3 | Arm Length 13ft. 1in. 4.0m |
Dimensions
| Ground Clearance | 1.67 ft in (500 mm) |
| Height To Top Of Cab | 10.31 ft in (3140 mm) |
| Width To Outside Of Tracks | 11.08 ft in (3390 mm) |
| Length Of Track On Ground | 13.25 ft in (4050 mm) |
| Tail Swing Radius | 11.06 ft in (3370 mm) |
| Removal Counterweight Clearance | 3.83 ft in (1160 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 32 in (800 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Ground Pressure | 7.16 psi (49.4 kPa) |
| Number Of Shoes Per Side | 48 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Drawbar Pull | 64375 lb (286.36 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6090H |
| Net Power | 271 hp (202 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 1898 lb ft (1399 Nm) |
| Displacement | 542 cu in (9 L) |
| Aspiration | Turbocharger w/ charge cooler |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 77970.9 lb (35367 kg) |
| Fuel Capacity | 166 gal (630 L) |
| Cooling System Fluid Capacity | 10.5 gal (39.7 L) |
| Hydraulic System Fluid Capacity | 89.9 gal (340 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 7.2 gal (27 L) |
| Swing Drive Fluid Capacity | 3.2 gal (11.8 L) |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 152.2 gal/min (576 L/min) |
Swing Mechanism
| Swing Speed | 10.7 rpm |
| Swing Torque | 81950 lb ft (111194 Nm) |
Buckets
| Reference Bucket Capacity | 2.4 yd3 (1.8 m3) |
| Minimum Bucket Capacity | 1.3 yd3 (1 m3) |
| Maximum Bucket Capacity | 2.8 yd3 (2.1 m3) |
