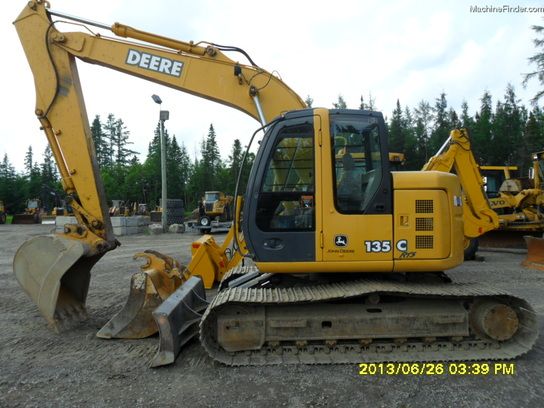

John Deere 135C RTS
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 23.92 ft in (7290 mm) |
| Shipping Height Of Unit | 9.33 ft in (2840 mm) |
| Max Cutting Height | 30.25 ft in (9220 mm) |
| Max Loading Height | 22.18 ft in (6760 mm) |
| Max Reach Along Ground | 26.78 ft in (8160 mm) |
| Max Vertical Wall Digging Depth | 16.31 ft in (4970 mm) |
| Max Digging Depth | 18.15 ft in (5530 mm) |
| Boom/Stick Option (Hex) 1 | 8'3" (2520mm) stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 24 ft in (7310 mm) |
| Max Cutting Height | 31.53 ft in (9610 mm) |
| Shipping Height Of Unit | 9.33 ft in (2840 mm) |
| Max Loading Height | 23.46 ft in (7150 mm) |
| Max Reach Along Ground | 28.35 ft in (8640 mm) |
| Max Vertical Wall Digging Depth | 17.92 ft in (5460 mm) |
| Max Digging Depth | 19.76 ft in (6020 mm) |
| Boom/Stick Option (Hex) 2 | 9'11" (3010mm) stick |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 8.99 ft in (2740 mm) |
| Width To Outside Of Tracks | 8.83 ft in (2690 mm) |
| Length Of Track On Ground | 9.45 ft in (2880 mm) |
| Tail Swing Radius | 4.81 ft in (1465 mm) |
| Removal Counterweight Clearance | 2.92 ft in (890 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 27.56 in (700 mm) |
| Number Of Shoes Per Side | 44 |
| Drawbar Pull | 26300 lb (116.99 kN) |
| Number Of Track Rollers Per Side | 7 |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Ground Pressure | 5.09 psi (35.1 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | CC-4BG1TC |
| Net Power | 88 hp (65.7 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 253 lb ft (343.1 Nm) |
| Displacement | 264.2 cu in (4.4 L) |
| Aspiration | Turbocharged and air-to-air charge air cooler |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 30441.5 lb (13808 kg) |
| Fuel Capacity | 53.1 gal (201 L) |
| Cooling System Fluid Capacity | 3.8 gal (14.2 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 3.5 gal (13 L) |
| Swing Drive Fluid Capacity | 0.7 gal (2.4 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 55.5 gal/min (210 L/min) |
Swing Mechanism
| Swing Speed | 13.7 rpm |
| Swing Torque | 24387 lb ft (33064.4 Nm) |
Buckets
| Reference Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.6 yd3 (1.2 m3) |
