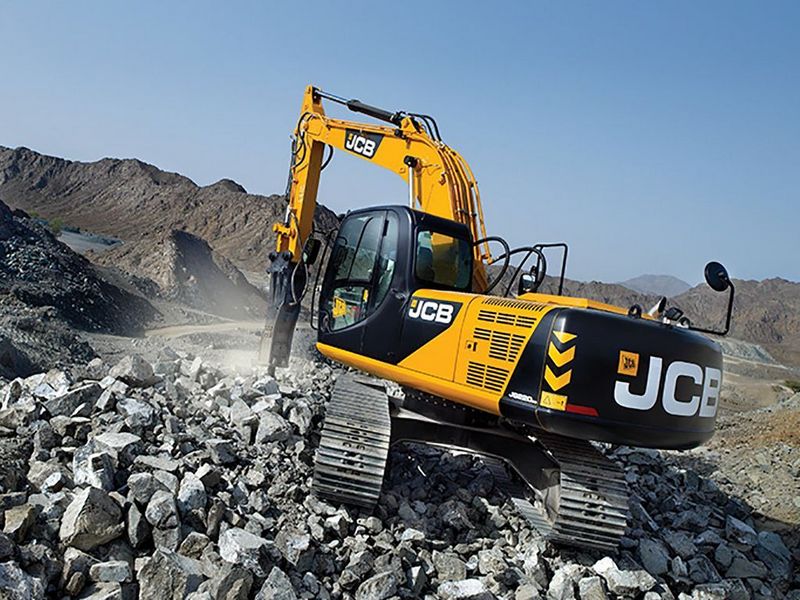

JCB JS220LXD
Browse All JCB or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 1.6 ft in (486 mm) |
| Height To Top Of Cab | 10.38 ft in (3161 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 12.01 ft in (3660 mm) |
| Tail Swing Radius | 9.49 ft in (2890 mm) |
| Removal Counterweight Clearance | 3.5 ft in (1066 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
Engine
| Engine Make | 2353 |
| Engine Model | BB-6BGIT |
| Net Power | 138 hp (103 kw) |
| Displacement | 396.3 cu in (6.5 L) |
Operational
| Operating Weight | 50858.5 lb (23069 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 77.7 gal/min (294 L/min) |
