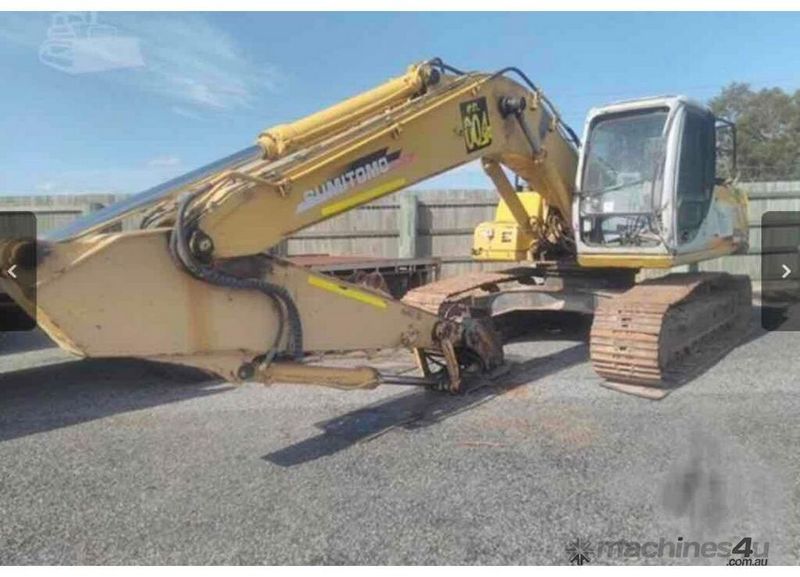

Sumitomo SH200LC-3
Browse All Sumitomo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 30.81 ft in (9390 mm) |
| Shipping Height Of Unit | 9.55 ft in (2910 mm) |
| Max Cutting Height | 31.67 ft in (9650 mm) |
| Max Loading Height | 22.45 ft in (6840 mm) |
| Max Reach Along Ground | 32.68 ft in (9960 mm) |
| Max Vertical Wall Digging Depth | 19.95 ft in (6080 mm) |
| Max Digging Depth | 22.02 ft in (6710 mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.45 ft in (2880 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 12.01 ft in (3660 mm) |
| Tail Swing Radius | 8.93 ft in (2720 mm) |
| Removal Counterweight Clearance | 3.42 ft in (1040 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 5.95 psi (41 kPa) |
Engine
| Engine Make | 2353 |
| Engine Model | BB-6BG1T |
| Net Power | 140 hp (104.4 kw) |
| Power Measured @ | 1950 rpm |
| Displacement | 396.3 cu in (6.5 L) |
Operational
| Operating Weight | 42990.2 lb (19500 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Hydraulic System Fluid Capacity | 54.5 gal (206 L) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
Swing Mechanism
| Swing Speed | 11.9 rpm |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (0.9 m3) |
