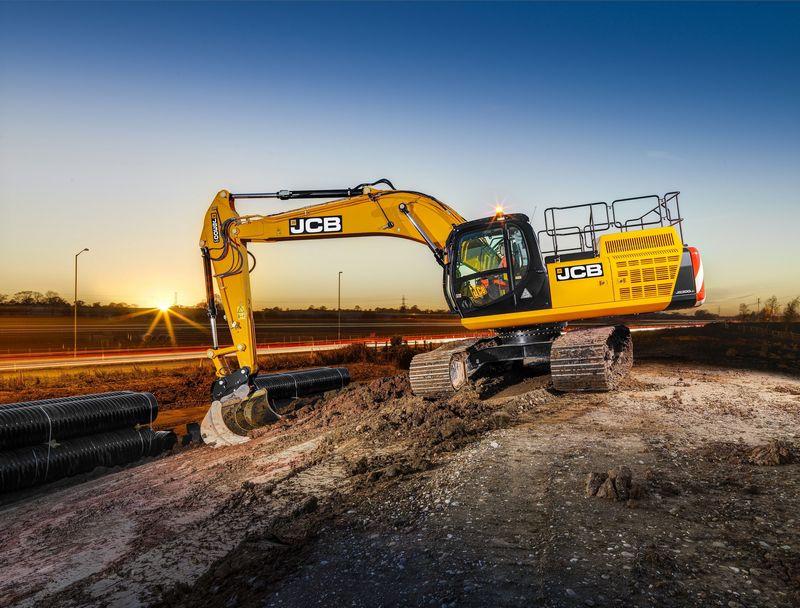

JCB JS 300 NLC
Browse All JCB or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.33 ft in (11070 mm) |
| Shipping Height Of Unit | 11.83 ft in (3610 mm) |
| Max Cutting Height | 31.92 ft in (9740 mm) |
| Max Loading Height | 22 ft in (6710 mm) |
| Max Reach Along Ground | 32.41 ft in (9876 mm) |
| Max Vertical Wall Digging Depth | 16.5 ft in (5020 mm) |
| Max Digging Depth | 20.92 ft in (6370 mm) |
| Minimum Swing Radius | 183.98 in (4673 mm) |
| Max Digging Reach | 33.09 ft in (10083 mm) |
| Boom/Stick Option (Hex) 1 | Dipper Length 2.21m Boom 6.45m |
| Max.Dumping Height | 22.3 ft in (6797 mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36 ft in (10980 mm) |
| Max Cutting Height | 32.75 ft in (9980 mm) |
| Shipping Height Of Unit | 11.75 ft in (3570 mm) |
| Max Loading Height | 22.67 ft in (6910 mm) |
| Max Reach Along Ground | 34 ft in (10370 mm) |
| Max Vertical Wall Digging Depth | 18.43 ft in (5610 mm) |
| Max Digging Depth | 22.33 ft in (6800 mm) |
| Max Digging Reach | 34.43 ft in (10492 mm) |
| Minimum Swing Radius | 182.6 in (4638 mm) |
| Max.Dumping Height | 22.98 ft in (7003 mm) |
| Boom/Stick Option (Hex) 2 | Dipper Lenght 2.63m Boom 6.45m |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 35.67 ft in (10880 mm) |
| Max Cutting Height | 33.67 ft in (10280 mm) |
| Max Loading Height | 23.58 ft in (7190 mm) |
| Shipping Height Of Unit | 11.25 ft in (3360 mm) |
| Max Reach Along Ground | 35.92 ft in (10940 mm) |
| Max Vertical Wall Digging Depth | 20.83 ft in (6340 mm) |
| Max Digging Depth | 24.25 ft in (7390 mm) |
| Max Digging Reach | 36.21 ft in (11036 mm) |
| Boom/Stick Option (Hex) 3 | Dipper Length 3.23m Boom 6.45m |
| Max.Dumping Height | 23.89 ft in (7279 mm) |
| Minimum Swing Radius | 159.73 in (4057 mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 36 ft in (10870 mm) |
| Shipping Height Of Unit | 12.67 ft in (3850 mm) |
| Max Cutting Height | 34.58 ft in (10550 mm) |
| Max Loading Height | 24.5 ft in (7460 mm) |
| Max Reach Along Ground | 38.33 ft in (11680 mm) |
| Max Digging Depth | 26.92 ft in (8190 mm) |
| Max Vertical Wall Dig Depth | 23.33 ft in (7460 mm) |
| Max Digging Reach | 38.64 ft in (11777 mm) |
| Boom/Stick Option (Hex) 4 | Dipper Length 4.03m Boom 6.45m |
| Max.Dumping Height | 24.8 ft in (7557 mm) |
| Minimum Swing Radius | 178 in (4521 mm) |
Dimensions
| Ground Clearance | 1.81 ft in (550 mm) |
| Height To Top Of Cab | 9.81 ft in (2990 mm) |
| Width To Outside Of Tracks | 9.5 ft in (2990 mm) |
| Length Of Track On Ground | 13008.54 ft in (3965000 mm) |
| Tail Swing Radius | 10.67 ft in (3251 mm) |
| Counterweight Clearance | 3.93 ft in (1195 mm) |
| Track Length On Ground | 13.1 ft in (3990 mm) |
| Undercarriage Overall Length | 15.89 ft in (4843 mm) |
| Removal Counterweight Clearance | 3.92 ft in (1190 mm) |
Undercarriage
| Track Gauge | 7.5 ft in (2390 mm) |
| Shoe Size | 24 in (600 mm) |
| Max Travel Speed | 3 mph (5 km/h) |
| Number Of Track Rollers Per Side | 2 |
| Ground Pressure | 9.1 psi (62.75 kPa) |
| Number Of Shoes Per Side | 50 |
| Drawbar Pull | 54904 lb (244 kN) |
| Number Of Carrier Rollers Per Side | 9 |
| Track Adjustment | Grease cylinder type. |
Slew System
| Slew Motor | Axial piston type |
| Slew Brake | Hydraulic braking plus automatic spring applied disc type parking brake. |
| Slew Torque | JS330:111kNm , JS370: 129kNm |
| Slew Gear | arge diameter, internally toothed fully sealed grease bath lubricated |
Electrical System
| System | 24 V |
| Alternator | 100Amp |
| Batteries | 2 X 12 Volt |
Engine
| Diesel Fuel Tank Capacity - Standard Tank | 12.5 gal (47 L) |
| Number Of Cylinders | 6 |
| Tier 1 Engine: Model | Tier 4 Final compliant |
| Engine Make | 2353 |
| Engine Model | MTU 6R1000 |
| Net Power | 281 hp (210 kw) |
| Gross Power | 271 hp (202.1 kw) |
| Power Measured @ | 2000 rpm |
| Aspiration | Turbocharged and intercooled |
| Displacement | 469.9 cu in (7.7 L) |
Operational
| Operating Weight | 71052.8 lb (32229 kg) |
| Fuel Capacity | 155.9 gal (590 L) |
| Cooling System Fluid Capacity | 10.1 gal (38 L) |
| Hydraulic System Fluid Capacity | 113.6 gal (430 L) |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.9 gal (14.5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4627 psi (31902.1 kPa) |
| Hydraulic Pump Flow Capacity | 153.3 gal/min (580 L/min) |
Swing Mechanism
| Swing Speed | 9.5 rpm |
Buckets
| Reference Bucket Capacity | 2 yd3 (1.5 m3) |
| Minimum Bucket Capacity | 1.6 yd3 (1.2 m3) |
| Maximum Bucket Capacity | 2.5 yd3 (1.9 m3) |
Brakes
| Parking Brake | Disc type |
| Brakes Type | Fully hydrostatic, two speed with autoshift. |
| Service Brake | Hydraulic counter balance valve. |
| Travel Speed | 3.3 mph (5.2 km/h) |
| Gradeability | 70 |
