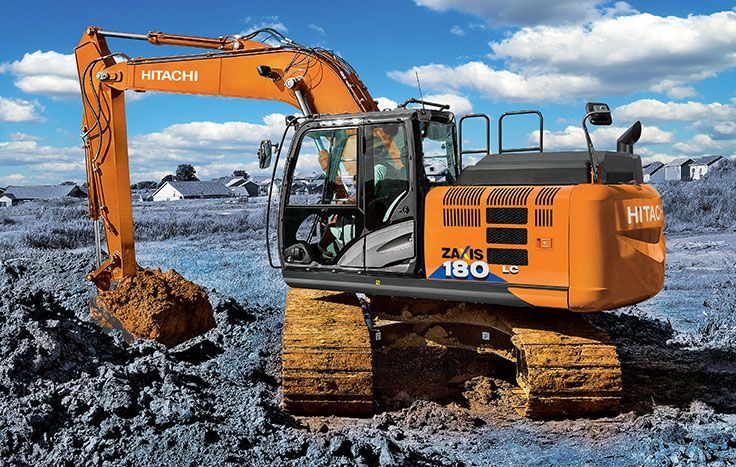

Hitachi ZX180LC-6
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 30.1 ft in (9174.48 mm) |
| Max Reach Along Ground | 30.5 ft in (9296.4 mm) |
| Max Vertical Wall Digging Depth | 18.3 ft in (5577.84 mm) |
| Max Digging Depth | 21.7 ft in (6614.16 mm) |
| Bucket Digging Force - Iso | 28552 lb (127.01 kN) |
| Arm Digging Force - Iso | 21358 lb (95.01 kN) |
| Arm Digging Force - Sae | 20459 lb (91.01 kN) |
| Bucket Digging Force - Sae | 25180 lb (112.01 kN) |
| Boom/Stick Option (Hex) 1 | 2.71 m (8 ft. 10 in.) |
| Minimum Swing Radius | 12.33 in (313 mm) |
| Max.Dumping Height | 21.7 ft in (6614.16 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 32.1 ft in (9784.08 mm) |
| Max Reach Along Ground | 32.1 ft in (9784.08 mm) |
| Max Vertical Wall Digging Depth | 20.7 ft in (6309.36 mm) |
| Max Digging Depth | 23.2 ft in (7071.36 mm) |
| Arm Digging Force - Iso | 18885 lb (84.01 kN) |
| Arm Digging Force - Sae | 18210 lb (81.01 kN) |
| Boom/Stick Option (Hex) 2 | 3.21 m (10 ft. 6 in.) |
| Bucket Digging Force - Iso | 28552 lb (127.01 kN) |
| Bucket Digging Force - Sae | 25180 lb (112.01 kN) |
| Max.Dumping Height | 22.9 ft in (6979.92 mm) |
| Minimum Swing Radius | 12.33 in (313 mm) |
Dimensions
| Track Gauge | 7.3 ft in (2225.04 mm) |
| Counterweight Clearance | 3.38 ft in (1030 mm) |
| Cab Height | 11.62 in (295 mm) |
| Center To Center – Idler To Sprocket | 11.1 ft in (3383.28 mm) |
| Undercarriage Overall Length | 13.8 ft in (4206.24 mm) |
| Overall Height | 11.1 ft in (3383.28 mm) |
| Overall Length | 29.8 ft in (9083.05 mm) |
| Overall Width | 11.82 in (300 mm) |
Undercarriage
| Drawbar Pull | 17250 lb (76.74 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 46 |
| Number Of Track Rollers Per Side | 7 |
| Track Adjustment | Hydraulic |
Engine
| Emission Tier Level | EPA Final Tier 4 |
| Battery | 2 |
| Number Of Cylinders | 4 |
| Off-Level Capacity | 70 % |
| Engine Model | 4JJ1 |
| Net Power | 101 hp (75.4 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 183.1 cu in (3 L) |
| Aspiration | Turbocharged and charged air cooled |
| Alternator | 50 amps |
Operational
| Swing Gearbox | 1.9 gal (6.9 L) |
| Propel Gearbox (Each) | 1.8 gal (6.8 L) |
| Operating Weight | 42999 lb (19504 kg) |
| Fuel Capacity | 75.3 gal (285 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Hydraulic System Fluid Capacity | 58.2 gal (220 L) |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Hydraulic Pump Flow Capacity | 33.1 gal/min (125 L/min) |
Performance
| Travel Speed Low | 2.2 mph (3.4 km/h) |
| Travel Speed - High | 3.3 mph (5.3 km/h) |
Swing Mechanism
| Swing Speed | 12.8 rpm |
| Swing Torque | 36878.2 lb ft (50000 Nm) |
Hydraulic System
| Pilot Pump - Maximum Flow | 8.9 gal/min (33.6 L/min) |
| Max. Pressure Setting | 570 psi (3930.1 kPa) |
| Implement - Operating Pressure | 4980 psi (34335.9 kPa) |
| Travel - Operating Pressure | 4980 psi (34335.9 kPa) |
| Swing - Operating Pressure | 4980 psi (34335.9 kPa) |
| Power Boost - Operating Pressure | 5511 psi (37997 kPa) |
| Controls | Pilot levers, short-stroke, low-effort hydraulic pilot controls with shutoff lever |
