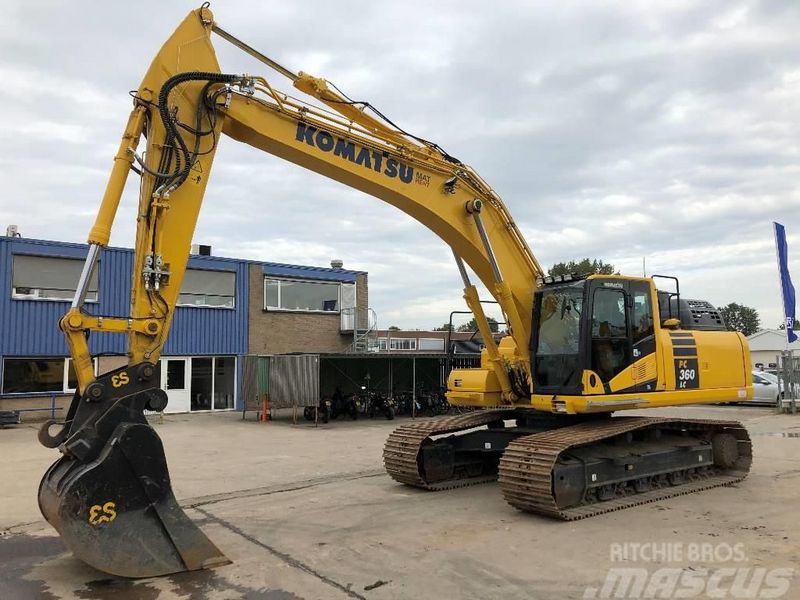

Komatsu PC360LC-11
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 16.8 ft in (5120 mm) |
| Max Digging Depth | 20.85 ft in (6355 mm) |
| Max Digging Height | 31.44 ft in (9580 mm) |
| Boom/Stick Option (Hex) 1 | Arm - 2.25 m |
| Max.Dumping Height | 21.64 ft in (6595 mm) |
| Bucket Digging Force - Sae | 54454.18 lb (242.23 kN) |
| Minimum Swing Radius | 172.84 in (4390 mm) |
| Max Digging Reach On Ground | 32.65 ft in (9950 mm) |
| Max Digging Reach | 33.32 ft in (10155 mm) |
| Arm Crowd Force - Sae | 49383.55 lb (219.67 kN) |
Boom/Stick Option (Hex) 2
| Max Reach Along Ground | 33.98 ft in (10355 mm) |
| Max Vertical Wall Digging Depth | 19.3 ft in (5880 mm) |
| Max Digging Depth | 22 ft in (6705 mm) |
| Minimum Swing Radius | 173.23 in (4400 mm) |
| Max. Digging Height | 32.7 ft in (9965 mm) |
| Max.Dumping Height | 22.63 ft in (6895 mm) |
| Arm Crowd Force-Sae | 42108.3 lb (187.31 kN) |
| Boom/Stick Option (Hex) 2 | Arm - 2.6 m |
| Bucket Digging Force - Sae | 54454.18 lb (242.23 kN) |
| Max Digging Reach | 34.62 ft in (10550 mm) |
Boom/Stick Option (Hex) 3
| Max Reach Along Ground | 35.83 ft in (10920 mm) |
| Max Vertical Wall Digging Depth | 21.26 ft in (6480 mm) |
| Max Digging Depth | 24.22 ft in (7380 mm) |
| Max. Digging Height | 33.5 ft in (10210 mm) |
| Boom/Stick Option (Hex) 3 | Arm - 3.2 m |
| Max Digging Reach | 36.42 ft in (11100 mm) |
| Minimum Swing Radius | 169.69 in (4310 mm) |
| Bucket Digging Force - Sae | 47619.85 lb (211.83 kN) |
| Arm Crowd Force-Sae | 35935.35 lb (159.85 kN) |
| Max.Dumping Height | 23.33 ft in (7110 mm) |
Boom/Stick Option (Hex) 4
| Max Reach Along Ground | 38.49 ft in (11730 mm) |
| Max Digging Depth | 26.84 ft in (8180 mm) |
| Arm Crowd Force-Sae | 30203.33 lb (134.36 kN) |
| Boom/Stick Option (Hex) 4 | Arm - 4.0 m |
| Bucket Digging Force - Sae | 47619.85 lb (211.83 kN) |
| Max Digging Reach | 39.05 ft in (11900 mm) |
| Max Vertical Wall Dig Depth | 23.89 ft in (7280 mm) |
| Max. Digging Height | 34.62 ft in (10550 mm) |
| Max.Dumping Height | 24.58 ft in (7490 mm) |
| Minimum Swing Radius | 170.08 in (4320 mm) |
Dimensions
| Ground Clearance | 1.64 ft in (498 mm) |
| Height To Top Of Cab | 10.37 ft in (3160 mm) |
| Length Of Track On Ground | 14.28 ft in (4350 mm) |
| Tail Swing Radius | 11.31 ft in (3445 mm) |
| Track Gauge | 8.5 ft in (2590 mm) |
| Overall Height (To Top Of Boom) | 11.16 ft in (3400 mm) |
| Track Length | 195.08 in (4955 mm) |
| Overall Length | 19.3 ft in (5880 mm) |
| Removal Counterweight Clearance | 3.89 ft in (1185 mm) |
| Shoe Width | 2.79 ft in (850 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Drawbar Pull | 65190.7 lb (289.99 kN) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 48 |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Komatsu |
| Engine Model | SAA6D114E-6 |
| Net Power | 257 hp (191.7 kw) |
| Gross Power | 271 hp (202.1 kw) |
| Power Measured @ | 1950 rpm |
| Displacement | 540.1 cu in (8.9 L) |
| Aspiration | Turbocharged |
| Bore | 4.5 in (114 mm) |
| Stroke | 5.7 in (144.5 mm) |
Capacities
| Hydraulic Oil Tank | 49.7 gal (188 L) |
| Swing Drive | 3.7 gal (14 L) |
| Fuel Tank | 159.9 gal (605 L) |
| Final Drive | 2.4 gal (9 L) |
| Engine Oil | 10.2 gal (38.5 L) |
Operational
| Operating Weight | 79146 lb (35900 kg) |
| Max Speed | 3.5 mph (5.5 km/h) |
| Hydraulic Pump Flow Capacity | 141.4 gal/min (535 L/min) |
Swing Mechanism
| Swing Speed | 9.5 rpm |
| Swing Torque | 75968.9 lb ft (103000.1 Nm) |
