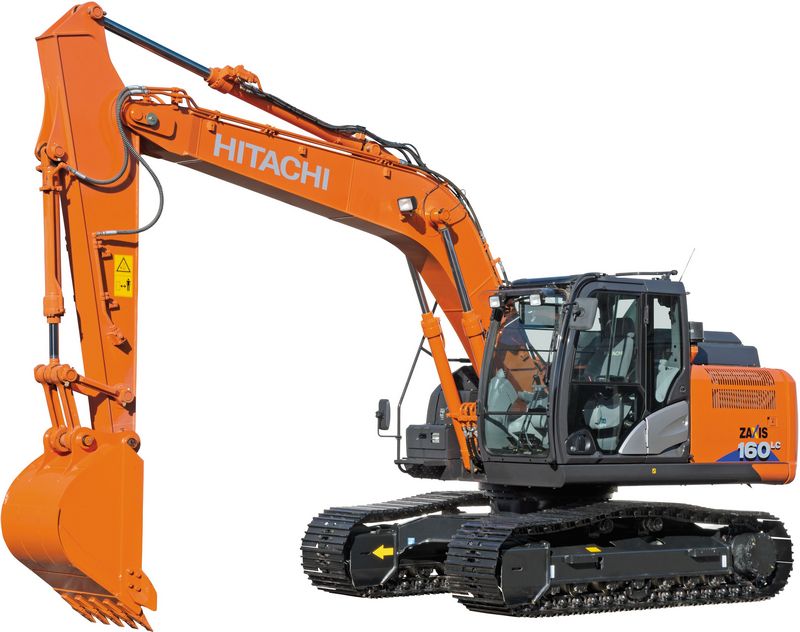

Hitachi ZX160LC-6
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 29.2 ft in (8900.16 mm) |
| Max Reach Along Ground | 28.7 ft in (8747.76 mm) |
| Max Vertical Wall Digging Depth | 16.11 ft in (4910.33 mm) |
| Max Digging Depth | 19.7 ft in (6004.56 mm) |
| Bucket Digging Force - Iso | 25180 lb (112.01 kN) |
| Arm Digging Force - Iso | 20459 lb (91.01 kN) |
| Arm Digging Force - Sae | 19784 lb (88.01 kN) |
| Bucket Digging Force - Sae | 22257 lb (99.01 kN) |
| Boom/Stick Option (Hex) 1 | 2.60 m (8 ft. 6 in.) |
| Minimum Swing Radius | 20.32 in (516 mm) |
| Max.Dumping Height | 20.3 ft in (6187.44 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 29.11 ft in (8872.73 mm) |
| Max Reach Along Ground | 30.1 ft in (9174.48 mm) |
| Max Vertical Wall Digging Depth | 18.8 ft in (5730.24 mm) |
| Max Digging Depth | 21.4 ft in (6522.72 mm) |
| Arm Digging Force - Iso | 18210 lb (81.01 kN) |
| Arm Digging Force - Sae | 17536 lb (78.01 kN) |
| Boom/Stick Option (Hex) 2 | 3.10 m (10 ft. 2 in.) |
| Bucket Digging Force - Iso | 25180 lb (112.01 kN) |
| Bucket Digging Force - Sae | 22257 lb (99.01 kN) |
| Max.Dumping Height | 20.12 ft in (6132.58 mm) |
| Minimum Swing Radius | 22.41 in (569 mm) |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Tail Swing Radius | 7.2 ft in (2194.56 mm) |
| Track Gauge | 6.6 ft in (2011.68 mm) |
| Counterweight Clearance | 3.38 ft in (1030 mm) |
| Overall Height | 10.2 ft in (3108.96 mm) |
| Overall Width | 10.6 in (269 mm) |
| Overall Length | 28.5 ft in (8686.8 mm) |
| Cab Height | 11.62 in (295 mm) |
| Center To Center – Idler To Sprocket | 10.2 ft in (3108.96 mm) |
| Undercarriage Overall Length | 8.2 ft in (2499.36 mm) |
Undercarriage
| Drawbar Pull | 38030 lb (169.17 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 43 |
| Number Of Track Rollers Per Side | 7 |
| Track Adjustment | Hydraulic |
Engine
| Emission Tier Level | EPA Final Tier 4 |
| Battery | 2 |
| Number Of Cylinders | 4 |
| Off-Level Capacity | 70 % |
| Engine Model | 4JJ1 |
| Net Power | 101 hp (75.4 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 183.1 cu in (3 L) |
| Aspiration | Turbocharged and charged air cooled |
| Alternator | 50 amps |
Operational
| Swing Gearbox | 1.9 gal (6.9 L) |
| Propel Gearbox (Each) | 1.8 gal (6.8 L) |
| Operating Weight | 38400.2 lb (17418 kg) |
| Fuel Capacity | 75.3 gal (285 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Hydraulic Pump Flow Capacity | 33.1 gal/min (125 L/min) |
Performance
| Travel Speed Low | 2.2 mph (3.4 km/h) |
| Travel Speed - High | 3.3 mph (5.3 km/h) |
Swing Mechanism
| Swing Speed | 13.3 rpm |
| Swing Torque | 32452.8 lb ft (44000 Nm) |
Hydraulic System
| Pilot Pump - Maximum Flow | 8.9 gal/min (33.6 L/min) |
| Max. Pressure Setting | 570 psi (3930.1 kPa) |
| Implement - Operating Pressure | 4980 psi (34335.9 kPa) |
| Travel - Operating Pressure | 4980 psi (34335.9 kPa) |
| Swing - Operating Pressure | 4980 psi (34335.9 kPa) |
| Power Boost - Operating Pressure | 5511 psi (37997 kPa) |
| Controls | Pilot levers, short-stroke, low-effort hydraulic pilot controls with shutoff lever |
