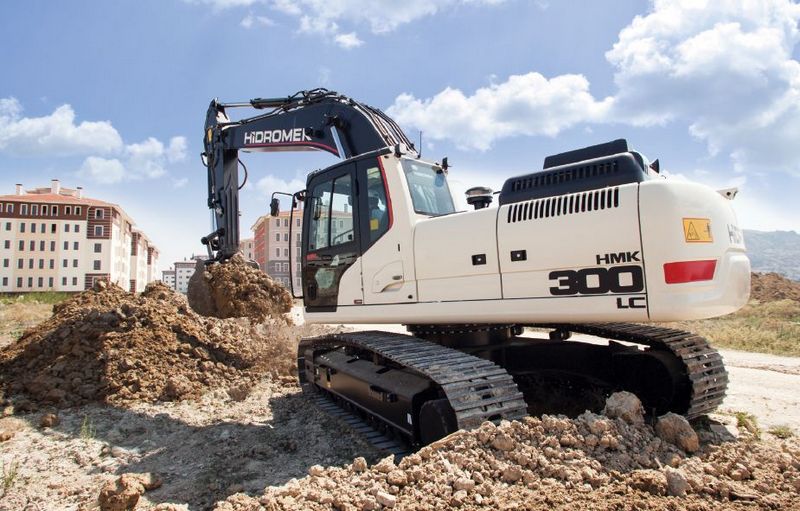

Hidromek HMK300LC
Browse All Hidromek or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 35.37 ft in (10780 mm) |
| Shipping Height Of Unit | 11.62 ft in (3540 mm) |
| Max Cutting Height | 33.08 ft in (10080 mm) |
| Max Loading Height | 23.07 ft in (7030 mm) |
| Max Reach Along Ground | 33.34 ft in (10160 mm) |
| Max Vertical Wall Digging Depth | 19.46 ft in (5930 mm) |
| Max Digging Depth | 22.25 ft in (6780 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6280mm w/ Arm 2500mm |
Dimensions
| Ground Clearance | 1.63 ft in (495 mm) |
| Height To Top Of Cab | 10.24 ft in (3120 mm) |
| Width To Outside Of Tracks | 10.5 ft in (3200 mm) |
| Length Of Track On Ground | 13.23 ft in (4030 mm) |
| Tail Swing Radius | 10.57 ft in (3220 mm) |
| Removal Counterweight Clearance | 3.84 ft in (1170 mm) |
Undercarriage
| Track Gauge | 8.54 ft in (2600 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Number Of Shoes Per Side | 51 |
| Max Travel Speed | 3.05 mph (4.91 km/h) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Carrier Rollers Per Side | 2 |
| Drawbar Pull | 56988.91 lb (253.5 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6D16-TLU2J |
| Gross Power | 216 hp (161.1 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 629.9 lb ft (854 Nm) |
| Displacement | 460.2 cu in (7.6 L) |
| Aspiration | Turbocharger, intercooler |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 67241 lb (30500 kg) |
| Fuel Capacity | 127.6 gal (483 L) |
| Hydraulic System Fluid Capacity | 97.8 gal (370 L) |
| Engine Oil Capacity | 7.4 gal (28 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 5120.5 psi (35304 kPa) |
| Hydraulic Pump Flow Capacity | 137.4 gal/min (520 L/min) |
Swing Mechanism
| Swing Speed | 11.4 rpm |
