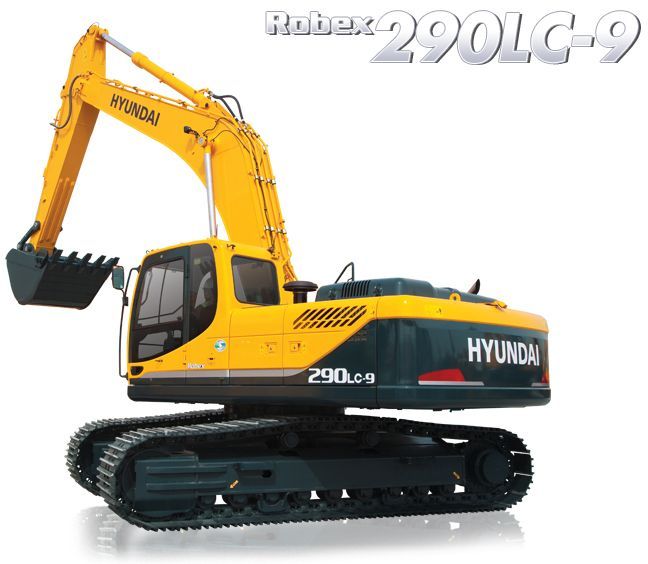

Hyundai R290LC-9
Browse All Hyundai or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 35.11 ft in (10700 mm) |
| Shipping Height Of Unit | 11.78 ft in (3590 mm) |
| Max Cutting Height | 33.04 ft in (10070 mm) |
| Max Loading Height | 22.77 ft in (6940 mm) |
| Max Reach Along Ground | 32.22 ft in (9820 mm) |
| Max Vertical Wall Digging Depth | 19.69 ft in (6000 mm) |
| Max Digging Depth | 21.13 ft in (6440 mm) |
| Boom/Stick Option (Hex) 1 | Boom 20' 6" (6250mm) / Stick 6' 11" (2100mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 34.95 ft in (10650 mm) |
| Max Cutting Height | 33.17 ft in (10110 mm) |
| Shipping Height Of Unit | 11.39 ft in (3470 mm) |
| Max Loading Height | 23.07 ft in (7030 mm) |
| Max Reach Along Ground | 33.08 ft in (10080 mm) |
| Max Vertical Wall Digging Depth | 19.2 ft in (5850 mm) |
| Max Digging Depth | 22.45 ft in (6840 mm) |
| Boom/Stick Option (Hex) 2 | Boom 20' 6" (6250mm) / Stick 8' 2" (2500mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 34.65 ft in (10560 mm) |
| Max Cutting Height | 33.34 ft in (10160 mm) |
| Max Loading Height | 23.33 ft in (7110 mm) |
| Shipping Height Of Unit | 10.8 ft in (3290 mm) |
| Max Reach Along Ground | 34.85 ft in (10620 mm) |
| Max Vertical Wall Digging Depth | 21.04 ft in (6410 mm) |
| Max Digging Depth | 24.61 ft in (7500 mm) |
| Boom/Stick Option (Hex) 3 | Boom 20' 6" (6250mm) / Stick 10' 0" (3050mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 34.88 ft in (10630 mm) |
| Shipping Height Of Unit | 11.49 ft in (3500 mm) |
| Max Cutting Height | 33.99 ft in (10360 mm) |
| Max Loading Height | 23.99 ft in (7310 mm) |
| Max Reach Along Ground | 36.82 ft in (11220 mm) |
| Max Digging Depth | 26.55 ft in (8090 mm) |
| Max Vertical Wall Dig Depth | 23.23 ft in (7080 mm) |
| Boom/Stick Option (Hex) 4 | Boom 20' 6" (6250mm) / Stick 12' 4" (3750mm) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 47.77 ft in (14560 mm) |
| Shipping Height Of Unit | 11.68 ft in (3560 mm) |
| Max Cutting Height | 47.58 ft in (14500 mm) |
| Max Loading Height | 40 ft in (12190 mm) |
| Max Reach Along Ground | 60.37 ft in (18400 mm) |
| Max Digging Depth | 48.63 ft in (14820 mm) |
| Max Vertical Wall Dig Depth | 39.44 ft in (12020 mm) |
| Boom/Stick Option (Hex) 5 | Boom 33' 6" (10200mm) / Stick 25' 9" (7850mm) |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Height To Top Of Cab | 9.88 ft in (3010 mm) |
| Width To Outside Of Tracks | 10.5 ft in (3200 mm) |
| Length Of Track On Ground | 13.23 ft in (4030 mm) |
| Tail Swing Radius | 10.5 ft in (3200 mm) |
| Removal Counterweight Clearance | 3.91 ft in (1190 mm) |
Undercarriage
| Track Gauge | 8.54 ft in (2600 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.24 mph (5.2 km/h) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 48 |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 7.97 psi (54.96 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB 6.7 |
| Gross Power | 227 hp (169.3 kw) |
| Net Power | 197 hp (147 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 700 lb ft (949.1 Nm) |
| Displacement | 409 cu in (6.8 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 64595.5 lb (29300 kg) |
| Fuel Capacity | 132.1 gal (500 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Hydraulic System Fluid Capacity | 87.2 gal (330 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Swing Drive Fluid Capacity | 3 gal (11 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4978 psi (34322.1 kPa) |
| Hydraulic Pump Flow Capacity | 133.2 gal/min (504 L/min) |
Swing Mechanism
| Swing Speed | 10.2 rpm |
Buckets
| Reference Bucket Capacity | 1.7 yd3 (1.3 m3) |
| Minimum Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Maximum Bucket Capacity | 2.5 yd3 (1.9 m3) |
