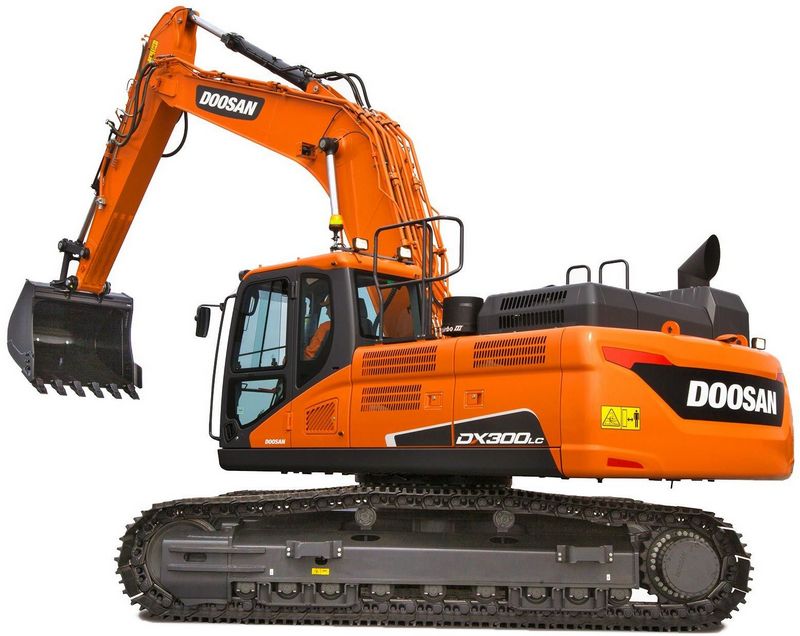

Doosan DX300LC-5
Browse All Doosan or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Loading Height | 23.89 ft in (7280 mm) |
| Max Digging Depth | 23.97 ft in (7305 mm) |
| Max Digging Height | 33.88 ft in (10325 mm) |
| Minimum Swing Radius | 159.06 in (4040 mm) |
| Boom/Stick Option (Hex) 1 | Boom 20'6""(6245 mm)/Arm 10\'2\"(3100mm) |
| Min Digging Reach | 2.04 ft in (620 mm) |
Boom/Stick Option (Hex) 2
| Max Loading Height | 24.27 ft in (7395 mm) |
| Max Digging Depth | 26.09 ft in (7950 mm) |
| Min Digging Reach | -0.91 ft in (-280 mm) |
| Boom/Stick Option (Hex) 2 | Boom 20'6""(6245 mm)/Arm 10\'2\"(3100mm) |
| Max. Digging Height | 34.14 ft in (10405 mm) |
| Minimum Swing Radius | 159.45 in (4050 mm) |
Dimensions
| Tail Swing Radius | 10.6 ft in (3230 mm) |
| Counterweight Clearance | 3.78 ft in (1150 mm) |
| Undercarriage Width | 9.72 ft in (2960 mm) |
| Cab Width | 3.32 ft in (1.01 m) |
| Track Shoe Width | 2.63 ft in (800 mm) |
Undercarriage
| Number Of Shoes Per Side | 48 |
| Number Of Bottom Rollers Per Side | 9 |
| Number Of Top Rollers Per Side | 2 |
Speeds
| High | 3.2 mph (5.2 km/h) |
| Low | 1.9 mph (3.1 km/h) |
Electrical System
| Alternator | 24 v, 100 amp |
| Starter | 24V |
| Battery | 12V, 100AH ,1300 CCA |
Engine
| Starter | 8 hp (6 kw) |
| Number Of Cylinders | 5 |
| Engine Make | Scania |
| Engine Model | DC09 |
| Gross Power | 271 hp (202.1 kw) |
| Net Power | 266 hp (198.4 kw) |
| Air Cleaner | Double Elements |
| Power Measured @ | 2000 rpm |
| Max Torque | 693.4 lb ft (940 Nm) |
| Displacement | 567.6 cu in (9.3 L) |
| Torque Measured @ | 1400 rpm |
| Bore | 5.2 in (130 mm) |
| Stroke | 5.6 in (140 mm) |
Operational
| Def Tank Capacity | 18.5 gal (70 L) |
| Operating Weight | 68764.4 lb (31191 kg) |
| Fuel Capacity | 132.1 gal (500 L) |
| Cooling System Fluid Capacity | 13 gal (49 L) |
| Hydraulic System Fluid Capacity | 81.9 gal (310 L) |
| Engine Oil Capacity | 9.6 gal (36 L) |
| Swing Drive Fluid Capacity | 1.9 gal (7 L) |
| Hydraulic System Relief Valve Pressure | 6.5 psi (44.9 kPa) |
| Hydraulic Tank | 74 gal (280 L) |
Performance
| Travel-Normal Mode | 4978 psi (34322.1 kPa) |
| Travel-Power Mode | 5263 psi (36287.1 kPa) |
| Swing - Normal Mode | 4978 psi (34322.1 kPa) |
| Swing-Power Mode | 5263 psi (36287.1 kPa) |
| Traction Force -Draw Bar Pull | 77162 lb ft (104617.7 Nm) |
| Maximum Grade | 70 % |
Swing Mechanism
| Swing Torque | 87787 lb ft (119023.2 Nm) |
| Swing Speed | 9.9 rpm |
Weights
| Counterweight | 11684 lb (5299.8 kg) |
Buckets
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 0.6 yd3 (0.4 m3) |
Hydraulic
| Main Pump Flow Standard | 131 gal/min (495.9 L/min) |
| Pilotpump-Gear Design | 7.1 gal/min (26.9 L/min) |
| Relief Pressure - Boost | 4978 psi (34322.1 kPa) |
| Relief Pressure -Normal | 5263 psi (36287.1 kPa) |
