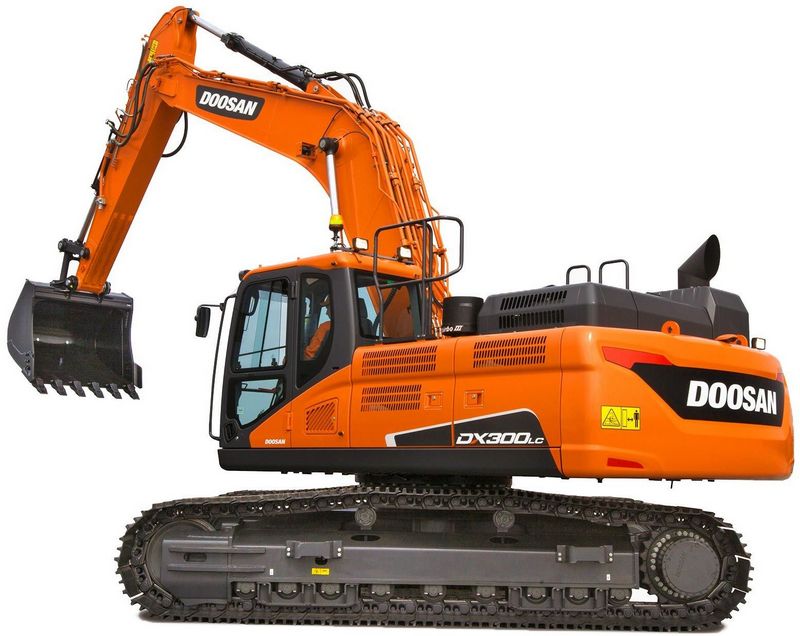

Doosan DX300LC
Browse All Doosan or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 35.24 ft in (10740 mm) |
| Shipping Height Of Unit | 11.41 ft in (3475 mm) |
| Max Cutting Height | 32.71 ft in (9970 mm) |
| Max Loading Height | 22.74 ft in (6930 mm) |
| Max Reach Along Ground | 32.7 ft in (9965 mm) |
| Max Vertical Wall Digging Depth | 17.74 ft in (5405 mm) |
| Max Digging Depth | 22.18 ft in (6760 mm) |
| Boom/Stick Option (Hex) 1 | Boom 20'6" (6245mm)/Stick 8'2" (2500mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 34.85 ft in (10620 mm) |
| Max Cutting Height | 33.9 ft in (10330 mm) |
| Shipping Height Of Unit | 10.98 ft in (3345 mm) |
| Max Loading Height | 23.82 ft in (7260 mm) |
| Max Reach Along Ground | 34.62 ft in (10550 mm) |
| Max Vertical Wall Digging Depth | 20.31 ft in (6190 mm) |
| Max Digging Depth | 24.15 ft in (7360 mm) |
| Boom/Stick Option (Hex) 2 | Boom 20'6" (6245mm)/Stick 10'2" (3100mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 34.98 ft in (10660 mm) |
| Max Cutting Height | 34.16 ft in (10410 mm) |
| Max Loading Height | 24.17 ft in (7365 mm) |
| Shipping Height Of Unit | 11.41 ft in (3475 mm) |
| Max Reach Along Ground | 36.37 ft in (11085 mm) |
| Max Vertical Wall Digging Depth | 21.89 ft in (6670 mm) |
| Max Digging Depth | 26.28 ft in (8010 mm) |
| Boom/Stick Option (Hex) 3 | Boom 20'6" (6245mm)/Stick 12'4" (3750mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 47.15 ft in (14370 mm) |
| Shipping Height Of Unit | 11.34 ft in (3455 mm) |
| Max Cutting Height | 46.45 ft in (14155 mm) |
| Max Loading Height | 39.15 ft in (11930 mm) |
| Max Reach Along Ground | 57.11 ft in (17405 mm) |
| Max Digging Depth | 45.53 ft in (13875 mm) |
| Max Vertical Wall Dig Depth | 38.16 ft in (11630 mm) |
| Boom/Stick Option (Hex) 4 | Boom 32'10" (10000mm)/Stick 22'11" (7000mm) |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Height To Top Of Cab | 10.06 ft in (3065 mm) |
| Width To Outside Of Tracks | 10.5 ft in (3200 mm) |
| Length Of Track On Ground | 13.16 ft in (4010 mm) |
| Tail Swing Radius | 10.5 ft in (3200 mm) |
| Removal Counterweight Clearance | 3.86 ft in (1175 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 8.1 psi (55.85 kPa) |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
| Number Of Shoes Per Side | 48 |
| Number Of Track Rollers Per Side | 9 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2252 |
| Engine Model | DL08 |
| Net Power | 197 hp (147 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 672 lb ft (911 Nm) |
| Displacement | 466 cu in (7.7 L) |
| Aspiration | turbocharged with air to air intercooler |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 64594 lb (29299.4 kg) |
| Fuel Capacity | 132.1 gal (500 L) |
| Cooling System Fluid Capacity | 9.3 gal (35 L) |
| Hydraulic System Fluid Capacity | 87.2 gal (330 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 9.6 gal (36 L) |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4699.3 psi (32400 kPa) |
| Hydraulic Pump Flow Capacity | 130.6 gal/min (494 L/min) |
Swing Mechanism
| Swing Speed | 9.9 rpm |
Buckets
| Reference Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Minimum Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Maximum Bucket Capacity | 2.3 yd3 (1.8 m3) |
