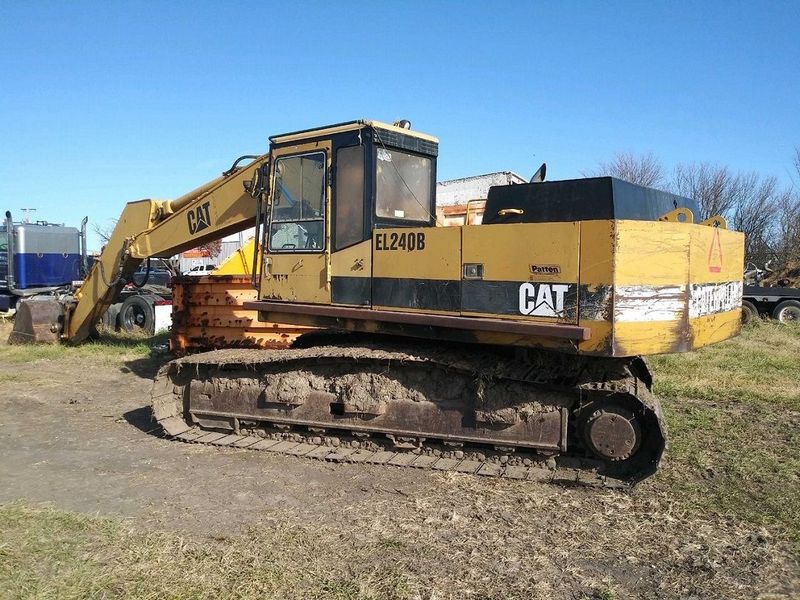

Caterpillar EL240B
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.93 ft in (9730 mm) |
| Shipping Height Of Unit | 9.91 ft in (3020 mm) |
| Max Cutting Height | 30.16 ft in (9190 mm) |
| Max Loading Height | 20.64 ft in (6290 mm) |
| Max Reach Along Ground | 30.84 ft in (9400 mm) |
| Max Vertical Wall Digging Depth | 16.51 ft in (5030 mm) |
| Max Digging Depth | 20.05 ft in (6110 mm) |
| Boom/Stick Option (Hex) 1 | Stick 7'3" (2200mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.93 ft in (9730 mm) |
| Max Cutting Height | 31.5 ft in (9600 mm) |
| Shipping Height Of Unit | 9.91 ft in (3020 mm) |
| Max Loading Height | 21.79 ft in (6640 mm) |
| Max Reach Along Ground | 32.81 ft in (10000 mm) |
| Max Vertical Wall Digging Depth | 19.39 ft in (5910 mm) |
| Max Digging Depth | 22.02 ft in (6710 mm) |
| Boom/Stick Option (Hex) 2 | Stick 9'2" (2800mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 31.93 ft in (9730 mm) |
| Max Loading Height | 22.25 ft in (6780 mm) |
| Max Reach Along Ground | 34.78 ft in (10600 mm) |
| Max Vertical Wall Digging Depth | 21.49 ft in (6550 mm) |
| Max Digging Depth | 24.32 ft in (7410 mm) |
| Boom/Stick Option (Hex) 3 | Stick 11'6" (3500mm) |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Height To Top Of Cab | 9.78 ft in (2980 mm) |
| Width To Outside Of Tracks | 11.09 ft in (3380 mm) |
| Length Of Track On Ground | 12.21 ft in (3720 mm) |
| Tail Swing Radius | 9.52 ft in (2900 mm) |
| Removal Counterweight Clearance | 3.61 ft in (1100 mm) |
Undercarriage
| Track Gauge | 8.47 ft in (2580 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Max Travel Speed | 2.12 mph (3.4 km/h) |
| Ground Pressure | 5.26 psi (36.27 kPa) |
| Number Of Shoes Per Side | 50 |
| Drawbar Pull | 41140.04 lb (183 kN) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3116 |
| Net Power | 148 hp (110.4 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 402.8 cu in (6.6 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 52029.1 lb (23600 kg) |
| Fuel Capacity | 74 gal (280 L) |
| Cooling System Fluid Capacity | 7 gal (26.4 L) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.6 gal (9.5 L) |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 3983 psi (27461.8 kPa) |
| Hydraulic Pump Flow Capacity | 121.6 gal/min (460 L/min) |
Swing Mechanism
| Swing Speed | 10.2 rpm |
Buckets
| Reference Bucket Capacity | 1.3 yd3 (1 m3) |
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 2.4 yd3 (1.9 m3) |
