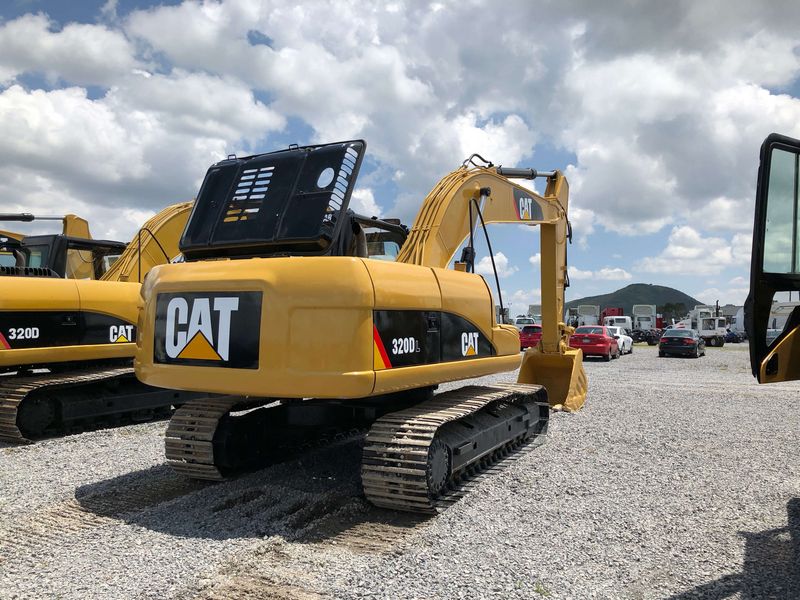

Caterpillar 320D L

Browse All Caterpillar or Hydraulic Excavator Models

Caterpillar 320D L

Contents:

Boom/Stick Option (Hex) 1

Shipping Length Of Unit	31 ft in (9440 mm)
Shipping Height Of Unit	12.25 ft in (3740 mm)
Max Cutting Height	32.58 ft in (9940 mm)
Max Loading Height	22.75 ft in (6940 mm)
Max Reach Along Ground	35.33 ft in (10760 mm)
Max Vertical Wall Digging Depth	22.83 ft in (6970 mm)
Max Digging Depth	25.17 ft in (7660 mm)
Boom/Stick Option (Hex) 1	Boom 18'7" (5680mm) / Stick 12'8" (3900mm) -Reach

Boom/Stick Option (Hex) 2

Shipping Length Of Unit	31 ft in (9460 mm)
Max Cutting Height	31.17 ft in (9490 mm)
Shipping Height Of Unit	9.92 ft in (3030 mm)
Max Loading Height	21.33 ft in (6490 mm)
Max Reach Along Ground	32.33 ft in (9860 mm)
Max Vertical Wall Digging Depth	19.93 ft in (6060 mm)
Max Digging Depth	22.08 ft in (6720 mm)
Boom/Stick Option (Hex) 2	Boom 18'7" (5680mm) / Stick 9'7" (2900mm) -Reach

Boom/Stick Option (Hex) 3

Shipping Length Of Unit	31 ft in (9460 mm)
Max Cutting Height	30.5 ft in (9290 mm)
Max Loading Height	20.67 ft in (6290 mm)
Shipping Height Of Unit	10 ft in (3050 mm)
Max Reach Along Ground	31 ft in (9460 mm)
Max Vertical Wall Digging Depth	18.5 ft in (5650 mm)
Max Digging Depth	20.67 ft in (6300 mm)
Boom/Stick Option (Hex) 3	Boom 18'7" (5680mm) / Stick 8'2" (2500mm) -Reach

Boom/Stick Option (Hex) 4

Shipping Length Of Unit	29.67 ft in (9050 mm)
Shipping Height Of Unit	10.75 ft in (3280 mm)
Max Cutting Height	29.33 ft in (8930 mm)
Max Loading Height	18.75 ft in (5720 mm)
Max Reach Along Ground	29.42 ft in (8960 mm)
Max Digging Depth	19.33 ft in (5890 mm)
Boom/Stick Option (Hex) 4	Boom 17'1" (5200mm) / Stick 7'10" (2400mm) -Reach
Max Vertical Wall Dig Depth	17.58 ft in (5360 mm)

Boom/Stick Option (Hex) 5

Shipping Length Of Unit	41.58 ft in (12680 mm)
Shipping Height Of Unit	10.5 ft in (3190 mm)
Max Cutting Height	31 ft in (9520 mm)
Max Loading Height	19.75 ft in (6030 mm)
Max Reach Along Ground	31.92 ft in (9730 mm)
Max Digging Depth	21.5 ft in (6560 mm)
Boom/Stick Option (Hex) 5	Boom 29'1" (8850mm) / Stick 20'7" (6280mm) -Reach
Max Vertical Wall Dig Depth	16.33 ft in (4990 mm)

Dimensions

Ground Clearance	1.5 ft in (450 mm)
Height To Top Of Cab	9.67 ft in (2950 mm)
Width To Outside Of Tracks	9.9 ft in (3017.52 mm)
Length Of Track On Ground	10.75 ft in (3265 mm)
Tail Swing Radius	9 ft in (2750 mm)
Counterweight Clearance	3.35 ft in (1020.07 mm)
Shipping Length	30.98 ft in (9439.91 mm)
Shipping Height	11.3 ft in (3444.24 mm)
Removal Counterweight Clearance	3.33 ft in (1020 mm)
Transport Width	10.44 ft in (3180.08 mm)

Undercarriage

Track Gauge	7.25 ft in (2200 mm)
Shoe Size	24 in (600 mm)
Max Travel Speed	3.5 mph (5.7 km/h)
Drawbar Pull	46085.82 lb (205 kN)

Engine

Engine Make	2236
Engine Model	C6.4 ACERT
Net Power	148 hp (110 kw)
Power Measured @	1800 rpm
Displacement	389 cu in (6.4 L)
Bore	4.1 in (102.2 mm)
Stroke	5.2 in (130.1 mm)
Net Power - Iso 9249	148 hp (110.4 kw)
Net Power - Sae J1349	148 hp (110.4 kw)
Engine Model	Cat C6.4 ACERT
Net Power - Eec 80/1269	148 hp (110.4 kw)
Net Flywheel Power	148 hp (110.4 kw)

Operational

Operating Weight	44820 lb (20330 kg)
Fuel Capacity	108 gal (410 L)
Cooling System Fluid Capacity	6.6 gal (25 L)
Hydraulic System Fluid Capacity	69 gal (260 L)
Engine Oil Capacity	8 gal (30 L)
Operating Voltage	24 V
Swing Drive Fluid Capacity	2.1 gal (8 L)
Alternator Supplied Amperage	50 amps
Hydraulic System Relief Valve Pressure	5076 psi (35000 kPa)
Hydraulic Pump Flow Capacity	54 gal/min (205 L/min)

Swing Mechanism

Swing Torque	45612 lb ft (61841.6 Nm)
Swing Speed	11.5 rpm

Weights

Operating Weight	44820 lb (20330.1 kg)
Operating Weight - Long Undercarriage	47554 lb (21570.2 kg)
Operating Weight - Standard Undercarriage	44820 lb (20330.1 kg)
Base Machine With Counterweight And 800 Mm Shoes	38514.8 lb (17470 kg)

Buckets

Reference Bucket Capacity	1.4 yd3 (1 m3)
Minimum Bucket Capacity	0.6 yd3 (0.5 m3)
Maximum Bucket Capacity	1.6 yd3 (1.2 m3)

Hydraulic System

Pilot System - Maximum Flow	9 gal/min
Pilot System - Maximum Pressure	566 psi
Maximum Pressure - Travel	5076 psi
Maximum Pressure - Swing	3553 psi
Maximum Pressure - Heavy Lift	5076 psi
Main Implement System - Maximum Flow (2x)	54 gal/min
Boom Cylinder - Bore	4.7 in (119.4 mm)
Boom Cylinder - Stroke	49.6 in (1259.9 mm)
Maximum Pressure - Equipment	5076 psi
B1 Family Bucket Cylinder - Bore	4.7 in (119.4 mm)
B1 Family Bucket Cylinder - Stroke	43.5 in (1104.9 mm)
Reach Stick Cylinder - Bore	5.5 in (139.7 mm)
Reach Stick Cylinder - Stroke	59.8 in (1519 mm)
Cb2 Family Bucket Cylinder - Bore	5.3 in (134.7 mm)
Cb2 Family Bucket Cylinder - Stroke	45.5 in (1155.7 mm)
Mass Stick Cylinder - Bore	5.5 in (139.7 mm)
Mass Stick Cylinder - Stroke	59.2 in (1503.7 mm)

Operating Specifications

Maximum Bucket Capacity	2.6 yd3 (2 m3)
Maximum Cutting Height	32.7 ft in (0.9 m)
Maximum Loading Height	273.3 in (6940.1 mm)
Minimum Loading Height	48.5 in (1230.2 mm)
Maximum Vertical Wall Digging Depth	274.5 in (6970.1 mm)

Service Refill Capacities

Cooling System	6.6 gal (25 L)
Final Drive - Each	2.1 gal (8 L)
Hydraulic Tank	32 gal (121.2 L)
Hydraulic System - Including Tank	69 gal (261.2 L)
Engine Oil	8 gal (30.3 L)
Fuel Tank Capacity	108 gal (408.9 L)
Swing Drive	2.1 gal (8 L)
Hydraulic Tank - Including Suction Pipe	36 gal (136.3 L)

Standards

Brakes	SAE J1026 APR90
Cab/Fogs	SAE J1356 FEB88

Sound Performance

Performance

ANSI/SAE J1166 APR 90

Track

Standard With Long Undercarriage	27.6 in (700.1 mm)
Ground Clearance - Fixed Gauge	17.72 in
Standard With Standard Undercarriage	23.7 in (600 mm)

Drive

Maximum Travel Speed	3.5 mph (5.7 km/h)
Maximum Drawbar Pull	46085.9 lb (20904.2 kg)
