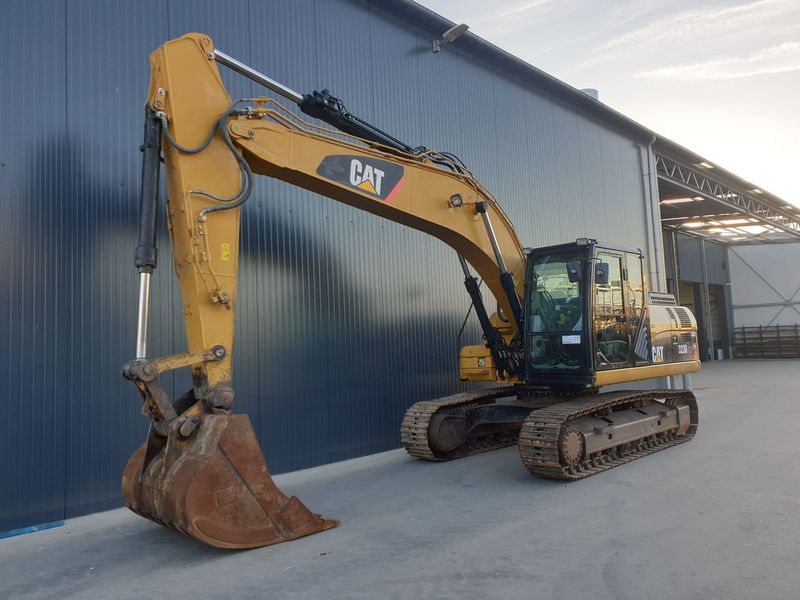

Caterpillar 323D LN
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.86 ft in (9710 mm) |
| Shipping Height Of Unit | 10.18 ft in (3100 mm) |
| Max Cutting Height | 29.34 ft in (8940 mm) |
| Max Loading Height | 19.66 ft in (5990 mm) |
| Max Reach Along Ground | 29.47 ft in (8980 mm) |
| Max Vertical Wall Digging Depth | 12.28 ft in (3740 mm) |
| Max Digging Depth | 18.97 ft in (5780 mm) |
| Boom/Stick Option (Hex) 1 | Boom 5680mm / Stick 1900mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.04 ft in (9460 mm) |
| Max Cutting Height | 30.78 ft in (9380 mm) |
| Shipping Height Of Unit | 10.01 ft in (3050 mm) |
| Max Loading Height | 21.63 ft in (6590 mm) |
| Max Reach Along Ground | 30.98 ft in (9440 mm) |
| Max Vertical Wall Digging Depth | 16.7 ft in (5090 mm) |
| Max Digging Depth | 20.35 ft in (6200 mm) |
| Boom/Stick Option (Hex) 2 | Boom 5680mm / Stick 2500mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 31.04 ft in (9460 mm) |
| Max Cutting Height | 31.44 ft in (9580 mm) |
| Max Loading Height | 22.22 ft in (6770 mm) |
| Shipping Height Of Unit | 9.95 ft in (3030 mm) |
| Max Reach Along Ground | 32.35 ft in (9860 mm) |
| Max Vertical Wall Digging Depth | 18.12 ft in (5520 mm) |
| Max Digging Depth | 21.82 ft in (6650 mm) |
| Boom/Stick Option (Hex) 3 | Boom 5680mm / Stick 2920mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 30.39 ft in (9260 mm) |
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Max Cutting Height | 28.58 ft in (8710 mm) |
| Max Loading Height | 18.74 ft in (5710 mm) |
| Max Reach Along Ground | 27.96 ft in (8520 mm) |
| Max Digging Depth | 17.49 ft in (5330 mm) |
| Max Vertical Wall Dig Depth | 11.72 ft in (3570 mm) |
| Boom/Stick Option (Hex) 4 | Mass Boom 5200mm / Stick 1900mm |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 10.01 ft in (3050 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 11.98 ft in (3650 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Removal Counterweight Clearance | 3.35 ft in (1020 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Ground Pressure | 7.97 psi (54.96 kPa) |
| Drawbar Pull | 46310.64 lb (206 kN) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Engine Make | 2236 |
| Engine Model | 3066 ATAAC |
| Net Power | 140 hp (104.4 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 390.6 cu in (6.4 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 48193.1 lb (21860 kg) |
| Fuel Capacity | 84.6 gal (320 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Hydraulic System Fluid Capacity | 68.7 gal (260 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 8 gal (30 L) |
| Swing Drive Fluid Capacity | 2.2 gal (8 L) |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Flow Capacity | 108.4 gal/min (410 L/min) |
Swing Mechanism
| Swing Speed | 11.5 rpm |
| Swing Torque | 45728.9 lb ft (62000 Nm) |
Buckets
| Reference Bucket Capacity | 1.5 yd3 (1.2 m3) |
