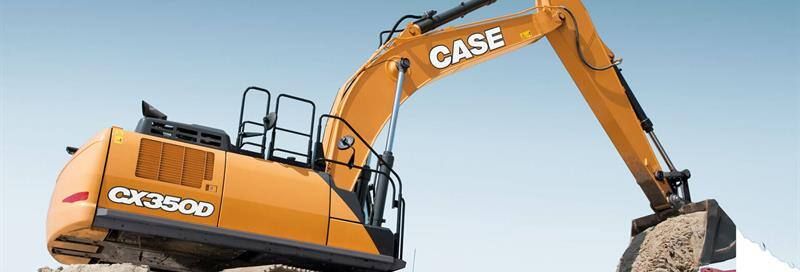

Case CX350D
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 20.81 ft in (6340 mm) |
| Max Digging Depth | 24.09 ft in (7340 mm) |
| Dump Height | 285.04 in (7240 mm) |
| Mximum Dig Radius | 439.77 in (11170 mm) |
| Bucket Rotation | 173 degrees |
| Boom/Stick Option (Hex) 1 | 10 ft 8 in (3.25 m) Arm |
| Dig Radius At Ground Line | 4323.23 in (109810 mm) |
| Minimum Swing Radius | 177.56 in (4510 mm) |
Boom/Stick Option (Hex) 2
| Boom/Stick Option (Hex) 2 | 8 ft 8 in (2.63 m) Arm |
| Minimum Swing Radius | 177.56 in (4510 mm) |
| Dig Radius At Ground Line | 411.42 in (10450 mm) |
| Bucket Rotation | 173 degrees |
| Maximum Reach Height | 408.67 in (10380 mm) |
| Dump Height | 279.93 in (7110 mm) |
| Maximum Dig Radius | 419.3 in (10650 mm) |
Boom/Stick Option (Hex) 3
| Bucket Rotation | 173 degrees |
| Dig Radius At Ground Line | 461.03 in (11710 mm) |
| Dump Height | 296.46 in (7530 mm) |
| Boom/Stick Option (Hex) 3 | 13 ft 3 in (4.04 m) Arm |
| Maximum Reach Height | 419.3 in (10650 mm) |
| Minimum Swing Radius | 178.35 in (4530 mm) |
| Maximum Dig Radius | 468.51 in (11900 mm) |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Tail Swing Radius | 11.65 ft in (3550 mm) |
| Track Shoe Width | 2.63 ft in (800 mm) |
| Cab Height | 125.2 in (3180 mm) |
| Center To Center – Idler To Sprocket | 13.26 ft in (4040 mm) |
| Ground Pressure | 7.5 psi (51.72 kPa) |
| Minimum Ground Clearance | 18.51 in (470 mm) |
| Overall Height | 11.39 ft in (3470 mm) |
| Boom Length | 0.03 ft in (6.15 mm) |
Undercarriage
| Track Shoe Width | 31.5 in (800 mm) |
Engine
| Emission Tier Level | Tier 4 |
| Fuel Injection | Direct injection – electronic |
| Fuel Filter | Replaceable, full flow spin-on cartridge |
| Air Filter Type | Dry type element with warning restriction indicator |
| Number Of Cylinders | 6 |
| Engine Model | Isuzu 6 HK1X |
| Net Power | 268 hp (199.9 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 4.1 lb ft (5.5 Nm) |
| Displacement | 476 cu in (7.8 L) |
| Fuel Type | Requires ultra-low sulfur fuel B5 biodiesel tolerant |
| Bore | 4.6 in (115 mm) |
| Stroke | 5 in (125 mm) |
| Oil Filter | Replaceable, full flow spin-on cartridge |
Capacities
| Engine Oil W/ Filter Change | 12.7 gal (48 L) |
| Swing Drive | 1.4 gal (5 L) |
| Hydraulic Tank | 46.3 gal (175 L) |
| Cooling System | 10.1 gal (38 L) |
| Def Tank | 40.2 gal (152 L) |
| Final Drive | 2.6 gal (9.5 L) |
| Hydraulic System | 92.5 gal (350 L) |
Operational
| Arm Breakout Force | 40240.8 lb (179 kN) |
| Operating Weight | 82483.8 lb (37414 kg) |
| Arm Size | 10662.8 ft in (3250 m) |
Performance
| Lift Over End 10' Radius - Lbs (Kg) | 22839.9 lb (10360 kg) |
| Lift Over End Max. Reach | 9832.7 lb (4460 kg) |
| Lift Over Side 10' Radius | 22839.9 lb (10360 kg) |
| Lift Over Side Max. Reach | 8487.8 lb (3850 kg) |
Swing Mechanism
| Swing Speed | 9.7 rpm |
Transmission
| Max Speed | 3.5 mph (5.5 km/h) |
Weights
| Counterweight | 16314.3 lb (7400 kg) |
Hydraulic System
| Main Pump - Maximum Flow | 128.4 gal/min (486 L/min) |
| System Relief Pressure | 49.8 psi (343 kPa) |
Brakes
| Brakes Type | Mechanical disc |
| Service Brake | SAHR disc – each motor |
| Travel Control | Dual stage relief or counter balance design |
