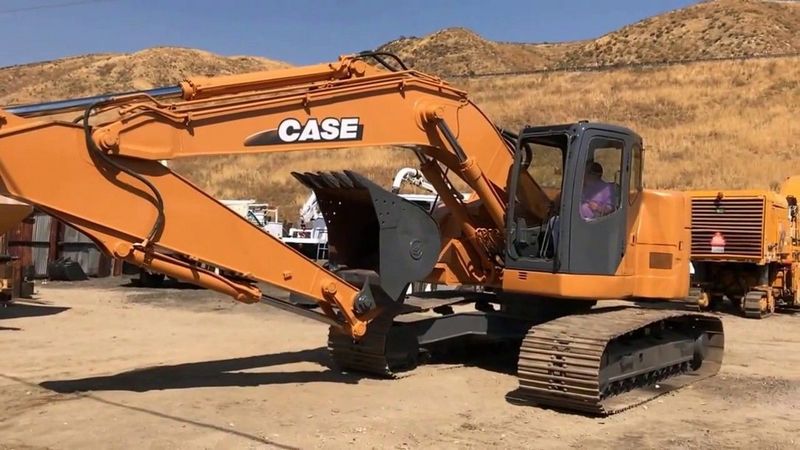

Case CX225
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 29 ft in (8850 mm) |
| Shipping Height Of Unit | 9.75 ft in (2970 mm) |
| Max Cutting Height | 35.83 ft in (10910 mm) |
| Max Loading Height | 26.33 ft in (8020 mm) |
| Max Reach Along Ground | 31.92 ft in (9730 mm) |
| Max Vertical Wall Digging Depth | 19.93 ft in (6060 mm) |
| Max Digging Depth | 22 ft in (6700 mm) |
| Boom/Stick Option (Hex) 1 | Boom 18'8" (5700mm)/ Stick 9'10" (3000 mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 29.33 ft in (8930 mm) |
| Max Cutting Height | 34.5 ft in (10520 mm) |
| Shipping Height Of Unit | 10.31 ft in (3140 mm) |
| Max Loading Height | 25 ft in (7630 mm) |
| Max Reach Along Ground | 30.08 ft in (9180 mm) |
| Max Vertical Wall Digging Depth | 18 ft in (5480 mm) |
| Max Digging Depth | 20 ft in (6.1 mm) |
| Boom/Stick Option (Hex) 2 | Boom 18'8" (5700mm)/ Stick 7'10" (2400 mm) |
Dimensions
| Ground Clearance | 18 ft in (460 mm) |
| Height To Top Of Cab | 9.75 ft in (2970 mm) |
| Width To Outside Of Tracks | 10.5 ft in (3190 mm) |
| Length Of Track On Ground | 12 ft in (3660 mm) |
| Tail Swing Radius | 5.67 ft in (1720 mm) |
| Removal Counterweight Clearance | 40 ft in (1020 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Number Of Shoes Per Side | 49 |
| Drawbar Pull | 42039 lb (187 kN) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.1 mph (5 km/h) |
| Ground Pressure | 5.5 psi (37.93 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AI-4HK1X, Tier III certified |
| Net Power | 153 hp (114.4 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 454 lb ft (615.6 Nm) |
| Displacement | 317 cu in (5.2 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 53223 lb (24141 kg) |
| Fuel Capacity | 70 gal (265 L) |
| Cooling System Fluid Capacity | 6.8 gal (25.6 L) |
| Hydraulic System Fluid Capacity | 54 gal (205 L) |
| Engine Oil Capacity | 6.1 gal (23.1 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal (5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic Pump Flow Capacity | 50.2 gal/min (190 L/min) |
Swing Mechanism
| Swing Speed | 10.6 rpm |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.6 yd3 (1.2 m3) |
