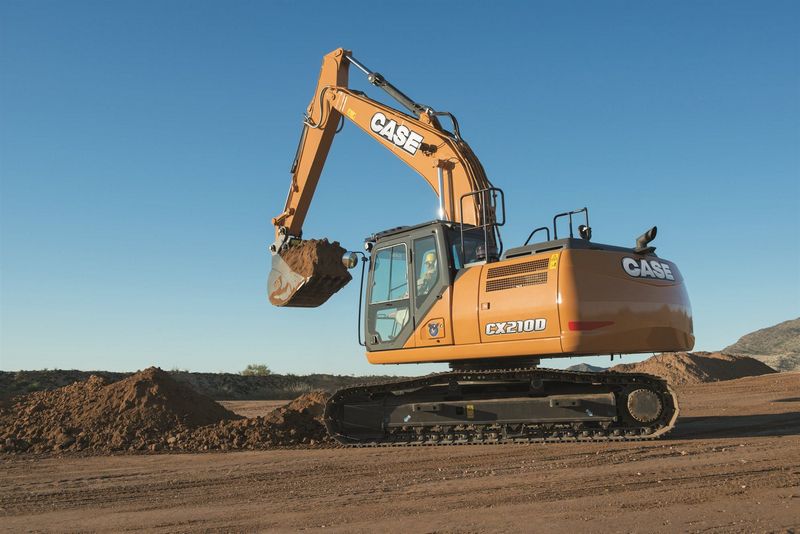

Case CX210D
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Digging Depth | 21.82 ft in (6650 mm) |
| Max Digging Reach On Ground | 31.93 ft in (9730 mm) |
| Max.Dumping Height | 22.35 ft in (6810 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Tail Swing Radius | 9.16 ft in (2790 mm) |
| Overall Height | 9.85 ft in (3000 mm) |
| Track Shoe Width | 2.63 ft in (800 mm) |
| Cab Height | 118.12 in (3000 mm) |
| Center To Center – Idler To Sprocket | 12.01 ft in (3660 mm) |
| Ground Pressure | 4.91 psi (33.79 kPa) |
| Minimum Ground Clearance | 109.06 in (2770 mm) |
| Boom Length | 18.8 ft in (5730.24 mm) |
Undercarriage
| Track Shoe Width | 31.5 in (800 mm) |
Engine
| Emission Tier Level | Tier 4 |
| Fuel Injection | Direct injection – electronic |
| Fuel Filter | Replaceable, full flow spin-on cartridge |
| Air Filter Type | Dry type element with warning restriction indicator |
| Number Of Cylinders | 4 |
| Engine Model | Isuzu 4 HKIX |
| Net Power | 160 hp (119.4 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 458.1 lb ft (621 Nm) |
| Displacement | 317.4 cu in (5.2 L) |
| Fuel Type | Requires ultra-low sulfur fuel B5 biodiesel tolerant |
| Bore | 4.6 in (115 mm) |
| Stroke | 5 in (125 mm) |
| Oil Filter | Replaceable, full flow spin-on cartridge |
Capacities
| Engine Oil W/ Filter Change | 6.2 gal (23.1 L) |
| Swing Drive | 1.4 gal (5 L) |
| Hydraulic Tank | 38.9 gal (147 L) |
| Cooling System | 8.3 gal (31.4 L) |
| Final Drive | 1.4 gal (5 L) |
| Hydraulic System | 66.1 gal (250 L) |
Operational
| Arm Breakout Force | 25178.6 lb (112 kN) |
| Operating Weight | 48973.5 lb (22214 kg) |
| Arm Size | 32.2 ft in (9.8 m) |
Performance
| Lift Over End 10' Radius - Lbs (Kg) | 18364.6 lb (8330 kg) |
| Lift Over End Max. Reach | 5732.1 lb (2600 kg) |
| Lift Over Side 10' Radius | 18364.6 lb (8330 kg) |
| Lift Over Side Max. Reach | 4894.3 lb (2220 kg) |
Swing Mechanism
| Swing Speed | 11.5 rpm |
Transmission
| Max Speed | 3.5 mph (5.6 km/h) |
Hydraulic System
| Main Pump - Maximum Flow | 111.5 gal/min (422 L/min) |
| System Relief Pressure | 4975 psi (34301.4 kPa) |
Brakes
| Brakes Type | Mechanical disc |
| Service Brake | SAHR disc – each motor |
| Travel Control | Dual stage relief or counter balance design |
