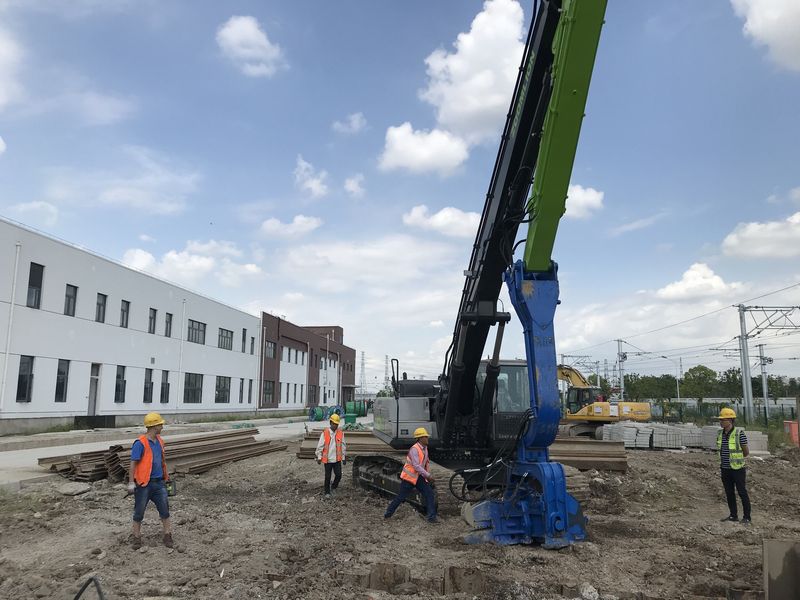

Zoomlion ZE310
Browse All Zoomlion or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 33.5 ft in (10210 mm) |
| Max Loading Height | 23.56 ft in (7180 mm) |
| Max Reach Along Ground | 35.83 ft in (10920 mm) |
| Max Digging Depth | 24.22 ft in (7380 mm) |
Dimensions
| Height To Top Of Cab | 10.04 ft in (3060 mm) |
| Width To Outside Of Tracks | 10.47 ft in (3190 mm) |
| Length Of Track On Ground | 14.93 ft in (4550 mm) |
| Tail Swing Radius | 10.34 ft in (3150 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.61 mph (5.8 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6CTA8.3-C240 |
| Gross Power | 237.4 hp (177 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 815.8 lb ft (1106 Nm) |
| Displacement | 32220.6 cu in (528 L) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 67461.5 lb (30600 kg) |
| Fuel Capacity | 124.7 gal (472 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Hydraulic System Fluid Capacity | 51.6 gal (195 L) |
| Engine Oil Capacity | 6.3 gal (23.8 L) |
| Swing Drive Fluid Capacity | 3 gal (11.3 L) |
Swing Mechanism
| Swing Speed | 9.8 rpm |
Buckets
| Reference Bucket Capacity | 1.8 yd3 (1.4 m3) |
