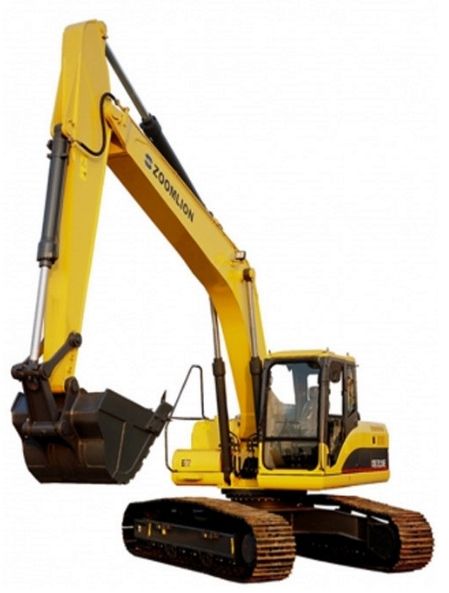

Zoomlion ZE230
Browse All Zoomlion or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 31.88 ft in (9714 mm) |
| Max Loading Height | 22.31 ft in (6799 mm) |
| Max Reach Along Ground | 33 ft in (10056 mm) |
| Max Digging Depth | 21.67 ft in (6603 mm) |
Dimensions
| Ground Clearance | 1.47 ft in (446 mm) |
| Height To Top Of Cab | 9.85 ft in (3000 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 13.97 ft in (4257 mm) |
| Tail Swing Radius | 9.59 ft in (2920 mm) |
| Removal Counterweight Clearance | 3.61 ft in (1099 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.8 mph (6.1 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6BTA5.9-C167 |
| Gross Power | 167.7 hp (125 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 480.2 lb ft (651 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 49824.5 lb (22600 kg) |
| Fuel Capacity | 84.6 gal (320 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Hydraulic System Fluid Capacity | 43.6 gal (165 L) |
| Engine Oil Capacity | 4.8 gal (18 L) |
| Swing Drive Fluid Capacity | 0.9 gal (3.4 L) |
Swing Mechanism
| Swing Speed | 11.3 rpm |
Buckets
| Reference Bucket Capacity | 1.4 yd3 (1.1 m3) |
