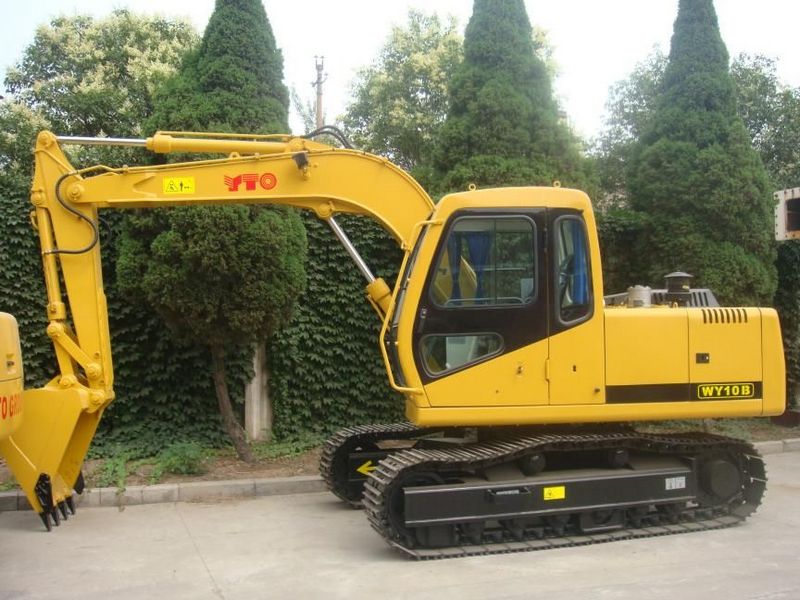

YTO WY10B
Browse All YTO or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 22.18 ft in (6760 mm) |
| Max Cutting Height | 18.44 ft in (5620 mm) |
| Max Loading Height | 13.13 ft in (4000 mm) |
| Max Digging Depth | 13.52 ft in (4120 mm) |
Dimensions
| Ground Clearance | 1.26 ft in (384 mm) |
| Height To Top Of Cab | 9.1 ft in (2771 mm) |
| Width To Outside Of Tracks | 7.91 ft in (2410 mm) |
| Length Of Track On Ground | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 6.39 ft in (1945 mm) |
| Removal Counterweight Clearance | 3.02 ft in (920 mm) |
Undercarriage
| Track Gauge | 6.24 ft in (1900 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 7.71 mph (12.4 km/h) |
Engine
| Engine Model | LR4105ZG56 |
| Net Power | 80.5 hp (60 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 23810 lb (10800 kg) |
| Hydraulic System Relief Valve Pressure | 4061.1 psi (28000 kPa) |
Buckets
| Reference Bucket Capacity | 0.6 yd3 (0.4 m3) |
